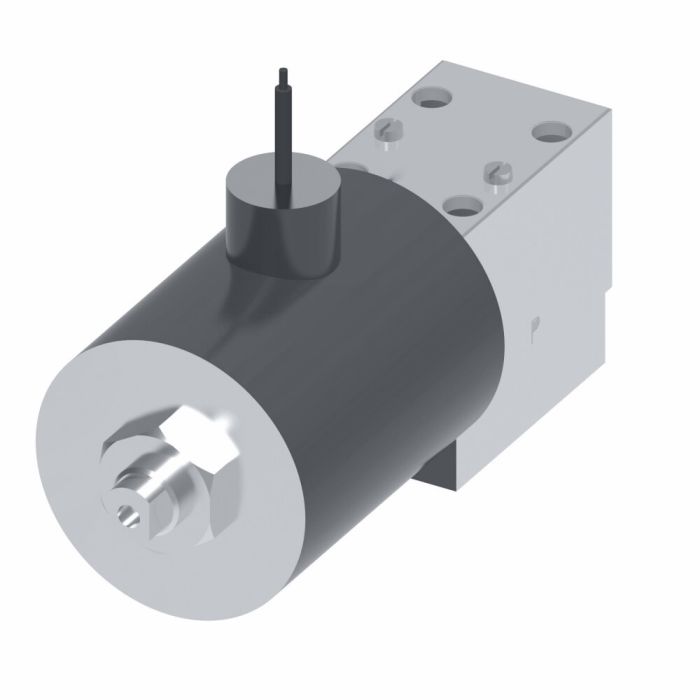

Vickers DG4V 3S 2A M X1 H4

Description & Features

Designed for demanding industrial hydraulic systems, the Vickers DG4V 3S 2A M X1 H4 is a single-stage directional control valve capable of handling flow rates up to 80 litres per minute. It supports both three- and four-way directional control configurations, making it adaptable across a wide range of circuit requirements.

Rated at 30 watts and sealed with Buna-N for reliable fluid compatibility, this valve mounts easily on industry-standard surfaces. Its application range spans die casting and foundry equipment, machine tools, marine and offshore installations, presses, primary metal and paper processing, test and simulation equipment, and turbine control systems, including wind, steam, and water turbine applications.

SKU: 02-156166

Supplier Part Number (MPN): 02-156166

Alternate Part Numbers: DG4V3S2AMX1H460

Specifications

Brand Vickers by Danfoss	Actuator Type Solenoid	Design 60 Series	Dimensions 5.75 in L x 1.8 in W x 3.57 in H	Domestic/Import Domestic	Electrical Connection Flameproof Coil TPEEX-D-118-T4	Indicator Light Without Indicator Light	Manual Override Plain	Media Petroleum Oil	Number of Stages 1	Performance Standard	Seal Material FKM	Segment Code C	Series DG4V-3 60 Series	Spool Position Monitor Without Spool Position Monitor	Spool Type Spool 2	Spring Arrangement Spring Offset End to End	Surge Suppressor Damper Without Surge Suppressor Damper	Valve Mount Type Subplate/Manifold

Similar Products

Model Number	Voltage Rating	Dimensions	Price	Action
02-148010		8.66 in L x 1.8 in W x 3.42 in H
02-310068		8.66 in L x 1.88 in W x 3.57 in H
02-317876		8.66 in L x 1.88 in W x 3.42 in H
02-339164		5.75 in L x 1.8 in W x 3.57 in H
02-357099		7.87 in L x 1.8 in W x 3.42 in H
02-390775		8.66 in L x 1.8 in W x 3.42 in H
02-391448		5.75 in L x 1.8 in W x 3.57 in H
02-392984		8.66 in L x 1.8 in W x 3.42 in H
02-394149		5.75 in L x 1.8 in W x 3.57 in H
02-395195		8.66 in L x 1.84 in W x 3.42 in H
02-411160		7.87 in L x 2.87 in W x 3.57 in H

Product Questions & Answers (2)

Question by: Randy C on Oct 9, 2025, 7:48 AM

flow rate on this one -- is 80 lpm the max it'll handle or just the rated continuous flow?

Answer by: Customer Support on Oct 10, 2025, 5:57 PM

80 litres per minute is the rated flow for this valve. Running a directional control valve right at its rated ceiling on a continuous basis tends to accelerate wear, so most folks size their system to stay a bit under that figure during normal operation. If your application is regularly pushing the full 80 lpm, it's worth factoring that into your maintenance schedule.

Question by: Dean M on Dec 23, 2025, 10:34 AM

got a setup that needs a single stage directional valve, is this one three-way or four-way

Answer by: Customer Support on Dec 25, 2025, 6:28 AM

Function-wise, it’s a DG4V-3 60 Design single stage directional control valve, and the series is used for three-way or four-way directional control depending on the model configuration.
