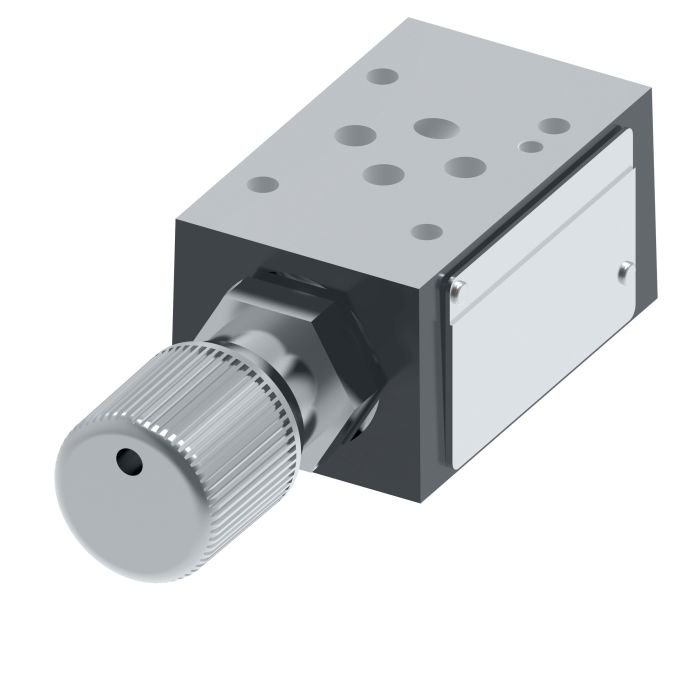

VICKERS DGMC 3 PT CH S 41

Ask A Question

Description & Features

The VICKERS DGMC 3 PT CH S 41 SystemStak valve is designed for applications including die casting and foundry, machine tools, marine and offshore, presses, primary metal processing, paper manufacturing, test equipment and simulation, and turbine control (wind, steam, and water). This Vickers valve minimizes installation costs, eliminates external leakage, and boosts resistance to contamination. It has a flow rate of 60 liters per minute.

This sub-branded valve uses Buna-N seals and is 1.87 inches wide.

SKU: 02-156243

Supplier Part Number (MPN): 02-156243

Specifications

Actuator Type
Pressure Operated
Adjustment Type
Handknob
Body Material
Iron
Connection Type
SAE
Design
41 Series
Dimensions
6.5 in L x 1.87 in W x 1.57 in H
Discharge 1
Discharge into T
Domestic/Import
Domestic
End Type
SAE
First Function
Pressure Limited in P
Gauge Port Thread
SAE 4 (7/16-20 UNF-2B)
Media
Petroleum Oil
Nominal Size
#03
Number of Stages
1
Performance
Standard
Seal Material
FKM
Series
DGMC Series
Valve Mount Type
Subplate/Manifold

Product Questions & Answers (1)

Sign In Hover me Please sign in to submit a question
Question by: Rod R on Feb 1, 2026, 7:43 PM
Flow rate on this one is 60 LPM, that enough for press applications, or is this valve better suited for lighter-duty work?
Answer by: Customer Support on Feb 3, 2026, 7:54 AM
Sixty liters per minute covers a solid range of press use, and press work is actually one of the listed applications for this valve. Whether that flow rate fits your specific circuit depends on your system demands, but it's not a light-duty component by any stretch. It also handles die casting, primary metal processing, and turbine control, so it's built for industrial-grade environments where consistent performance matters.
