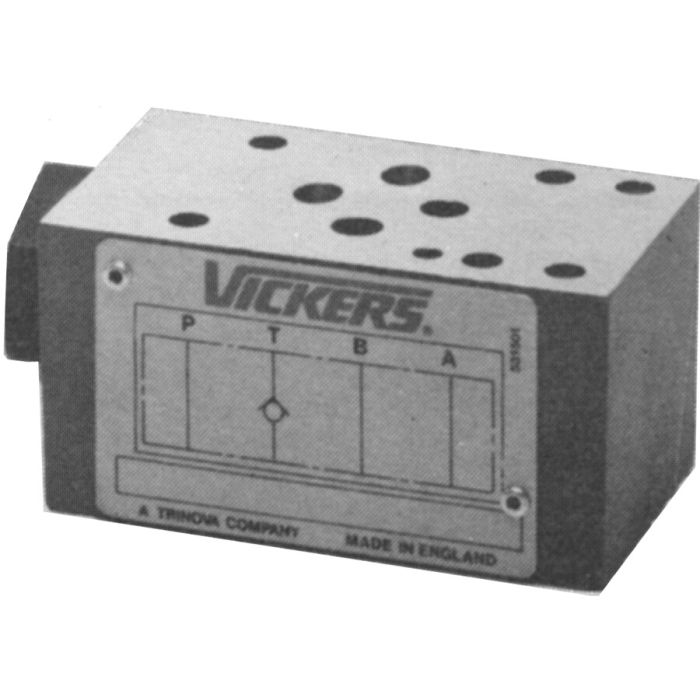

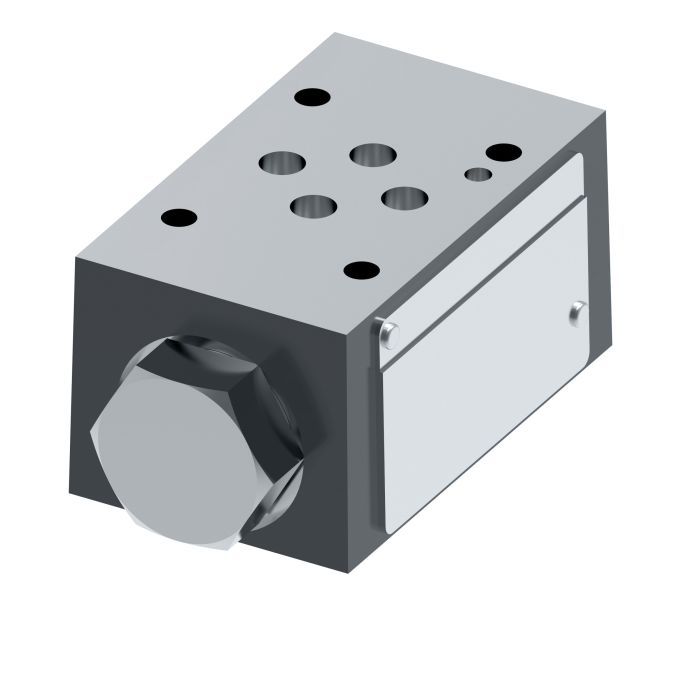

VICKERS DGMDC 3 Y PL 41

Description & Features

The Eaton Vickers DGMDC 3 Y PL 41 is a system stack valve designed to reduce installation costs and eliminate external leakage, while also boosting resistance to contamination. This valve is suitable for applications such as die casting and foundry work, machine tools, marine/offshore environments, presses, primary metal processing, paper production, test equipment and simulation, and turbine control systems (wind, steam, and water).

Featuring Buna-N seals, the Vickers DGMDC 3 Y PL 41 has a flow rate of 60 liters per minute and a width of 1.87 inches.

SKU: 02-157021

Supplier Part Number (MPN): 02-157021

Alternate Part Numbers: C1DU35, DGMDC3YPL41

Specifications

Actuator Type Pressure Operated	Body Material Iron	Check Location Line P	Design Series 41 Series	Dimensions 3.46 in L x 1.87 in W x 1.57 in H	Direction of Flow Towards Actuator	Domestic/Import Domestic	igs Only With igs	Language English	Material Standard ANSI B93.7M-D03	Media Petroleum Oil	Mounting Type Manifold, Subplate	Nominal Size #03	Performance Standard	Seal Material FKM	Segment Code B	Series DGMDC-3 Series	Valve Mount Type Subplate/Manifold

Product Questions & Answers (3)

Question by: Darryl G on Mar 5, 2026, 3:04 PM

Is this valve stackable, or is it a standalone unit?

Answer by: Customer Support on Mar 7, 2026, 6:28 AM

Reduce installation costs by stacking multiple valves together to control different functions without needing extra hydraulic lines.

Question by: Rex C on Apr 28, 2025, 8:41 AM

got a tight spot in my stack, how wide is this valve body?

Answer by: Customer Support on Apr 29, 2025, 11:50 AM

For layout and clearance, the listed product width is 1.87.

Question by: Duane W on Oct 3, 2025, 4:16 PM

flow rate on this valve, is it 60 LPM? trying to match up what we already got running on the press line

Answer by: Customer Support on Oct 5, 2025, 9:02 AM

Confirmed at 60 litres per minute. That matches what Eaton Vickers rates this DGMDC-3 for, so if your press circuit is already running near that range, you're in good shape with this one.
