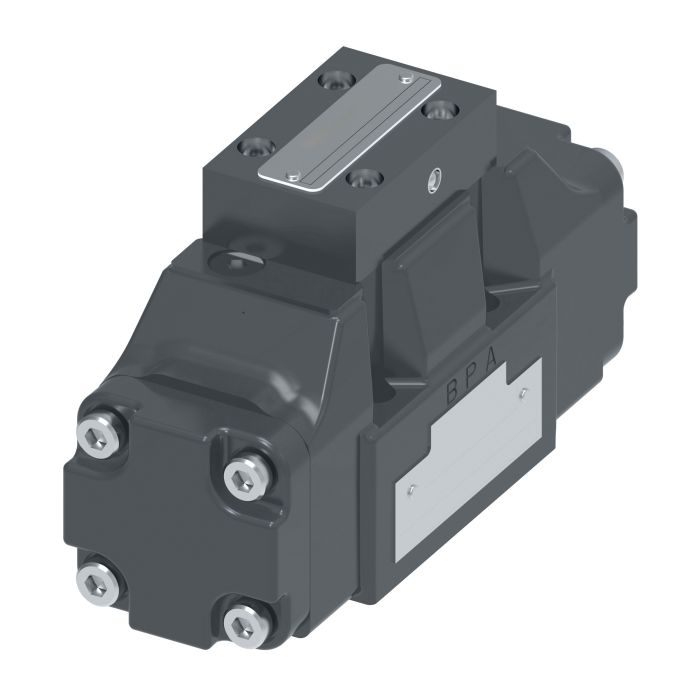

main product photo

VICKERS KDG3V 5 2C90N E 10

Ask A Question

Description & Features

Designed for precision flow control across demanding industrial environments, the Vickers KDG3V 5 2C90N E 10 is a direct-acting proportional valve rated at 90 litres per minute. Fluorocarbon seals provide reliable compatibility with a wide range of hydraulic fluids, making this valve well suited to heavy-duty continuous-duty applications.

Available in three performance levels, ultra, high, and standard, to match varying application requirements, this valve supports plug-and-play functionality that reduces commissioning time. Suitable for use in machine tool, press, marine and offshore, die casting and foundry, primary metal and paper, turbine control, and test equipment and simulation contexts.

SKU: 02-157191

Supplier Part Number (MPN): 02-157191

Specifications

Brand
Vickers by Danfoss
Actuator Type
Hydraulic, Pilot Operated
Build Type
Spring Centered
Design Series
10 Series
Dimensions
8.5 in L x 2.77 in W x 4.3 in H
Domestic/Import
Domestic
Feedback Sensor
Without Feedback Sensor
Language
English
Media
Anti-Wear Hydraulic Oil, Non-Alkyl Based Phosphate Ester
Metering
Meter-In/Meter-Out
Number of Stages
1
On Board Electronics
Without On Board Electronics
Performance
Standard
ProFX Compatible
Without ProFX Compatible
Reducer Module
Without Reducer Module
Reverse Flow Check
Without Reverse Flow Check
Seal Material
FKM
Series
KDG3V-5 10 Series
Special Features
With DGMA-3 Crossover Plate
Spool Type
All Ports Blocked
Symmetric Flow
With Symmetric Flow
Valve Mount Type
Subplate

Product Questions & Answers (2)

Question by: Randy B on Jan 1, 2026, 12:38 PM
We run these valves pretty much around the clock on our press line. Fluorocarbon seals hold up to that kind of continuous use, or are they gonna start breaking down after a while?
Answer by: Customer Support on Jan 2, 2026, 7:34 PM
Fluorocarbon seals are well suited to heavy-duty continuous-duty applications, so running this valve around the clock on a press line is exactly the kind of workload it's built for. That seal material holds up across a wide range of hydraulic fluids without breaking down prematurely, which is part of why it gets specified for demanding industrial environments in the first place.
Question by: Daryl S on Apr 6, 2026, 9:25 PM
I'm seeing 90 liters per minute flow rate. Is that the max, or can it handle a little more for short bursts?
Answer by: Customer Support on Apr 7, 2026, 9:39 PM
That 90 liters per minute is the rated flow. Running it higher, even for short times, could cause problems with performance and reliability.
