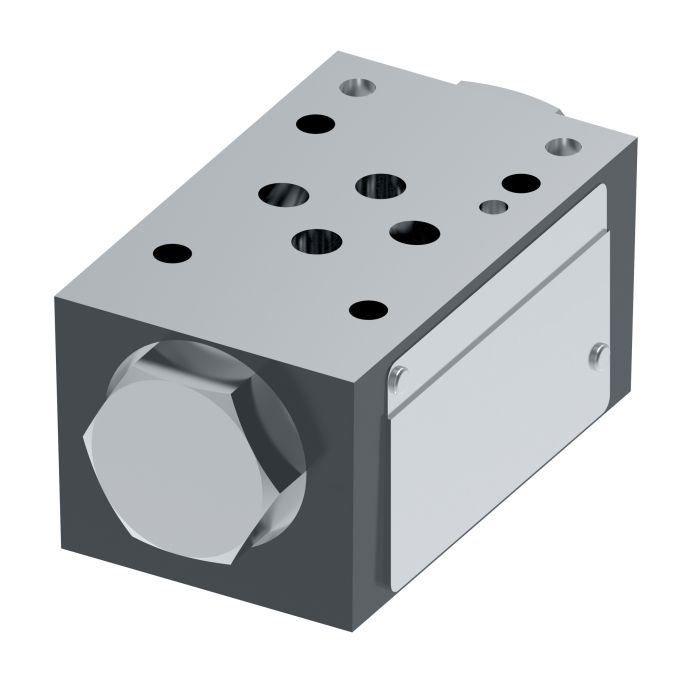

VICKERS DGMPC 3 DABN DBAN 41

Description & Features

The Eaton Vickers DGMPC 3 DABN DBAN 41 is suited for machine tool and multiple industrial applications.

This Vickers valve helps reduce installation costs, eliminates external leakage, and boosts resistance to contamination. It has a flow rate of 60 liters per minute and utilizes Buna-N seals.

SKU: 02-157719

Supplier Part Number (MPN): 02-157719

Alternate Part Numbers: C1JT93, DGMPC3DABNDBAN41

Specifications

Brand Vickers by Danfoss	Actuator Type Pressure Operated	Body Material Iron	Decompression Feature 10:1 Decompression Ratio	Design Series 41 Series	Dimensions 3.82 in L x 1 in W x 1.57 in H	Domestic/Import Domestic	Function Check in Line A, Pilot Operated From Line B	Function Dual Check in Line B, Pilot Operated From Line A	igs Only With igs	Language English	Material Standard ANSI B93.7M-D03	Media Petroleum Oil	Mounting Type Manifold, Subplate	Nominal Size #03	Performance Standard	Seal Material FKM	Series DGMPC-3 Series	Valve Mount Type Subplate/Manifold

Product Questions & Answers (3)

Question by: Wayne T on May 28, 2025, 3:23 PM

seals on this valve, what are they made of? trying to figure out if it'll hold up with the fluids we run through our system

Answer by: Customer Support on May 30, 2025, 8:57 AM

Buna-N is the seal material on this one. It's a common choice for hydraulic systems and handles most standard petroleum-based hydraulic fluids well. If your setup runs anything outside of that, like phosphate ester fluids or certain synthetics, you'd want to verify Buna-N compatibility with whatever fluid you're working with before committing.

Question by: Brett C on Jun 20, 2025, 9:48 AM

got a machine tool setup. what’s this DGMPC-3 41 valve really for

Answer by: Customer Support on Jun 21, 2025, 5:33 PM

In a machine tool or other industrial hydraulic system, the DGMPC-3 41 Design SystemStak valve is used as part of a stacked valve arrangement to handle directional control functions while keeping the hydraulic connections compact.

Question by: Terry G on Dec 29, 2025, 9:16 PM

Wondering if this'll fit in place of my old DGMPC-3? Seems like there's a couple different designs.

Answer by: Customer Support on Dec 31, 2025, 6:58 AM

This DGMPC-3 valve is part of the 41 Design SystemStak series, so as long as your current valve is also from that series, it should be a direct replacement.
