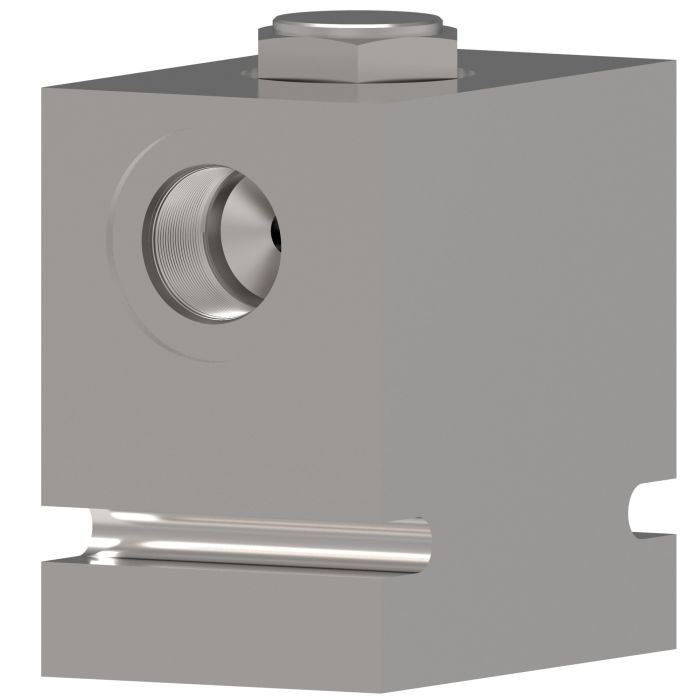

Vickers SPC1 10V P 6T

Description & Features

The Vickers SPC1 10V P 6T is a poppet style check valve designed for use in demanding mobile and industrial applications, including refuse haulers and harvesters. This Vickers by Danfoss / Eaton valve offers high operational efficiency and low spring settings.

This check valve has a 3/8" port size and a maximum flow rate of 45 liters per minute. It is designed to handle pressures up to 350 bar (5000 psi) and a flow rate of 227 L/min (60 USgpm).

SKU: 02-161196

Supplier Part Number (MPN): 02-161196

Specifications

Actuator Type Pilot Operated	Body Material Aluminum	Connection Type SAE	Dimensions 2-1/2 in L x 3-1/2 in W x 1-1/4 in H	Domestic/Import Import	End Type SAE	Language English	Mounting Type Screw-In	Nominal Size 10	Number of Ports/Ways 3-Port	Seal Material FKM	Series SPC1-10 Series	Style Poppet

Product Questions & Answers (2)

Question by: Sheila B on Sep 16, 2025, 12:14 PM

What size are the ports on this check valve?

Answer by: Customer Support on Sep 18, 2025, 6:41 AM

It uses a 3/8" port size.

Question by: Glen M on Mar 27, 2026, 1:02 PM

what's the max pressure this check valve can handle? got a refuse hauler running some pretty stout hydraulic loads and want to make sure it won't give out on me

Answer by: Customer Support on Mar 29, 2026, 12:44 PM

Rated up to 350 bar, which works out to 5000 psi. For a refuse hauler running heavy hydraulic demand, that pressure ceiling gives you solid headroom. The flow capacity tops out at 227 L/min (60 USgpm), so it's built to keep up with serious working loads without breaking a sweat.
