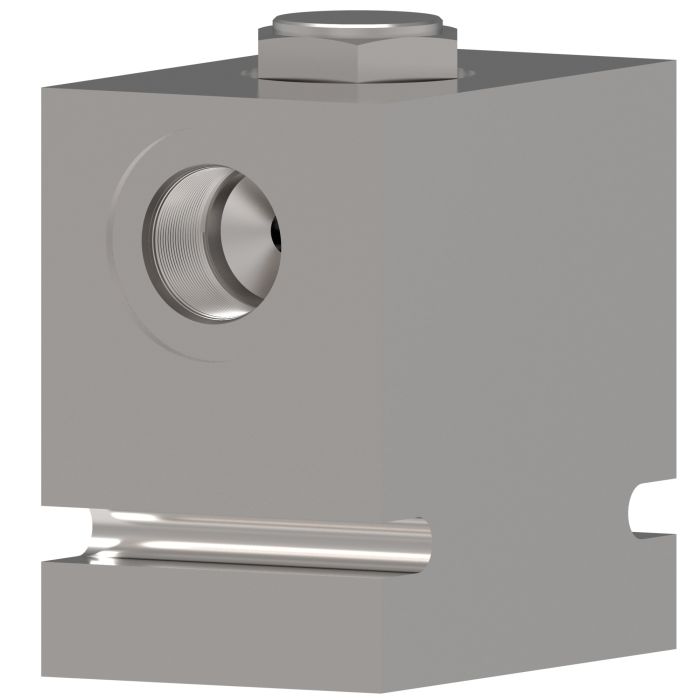

VICKERS CV1-10-P-8T-5

Description & Features

The Vickers CV1-10-P-8T-5 check valve is designed for mobile and industrial applications, including use in harvesters and refuse haulers. This poppet style valve provides high operational efficiency with low spring settings.

This Vickers check valve offers a flow rate of 45 liters per minute, with a maximum pressure of 350 bar (5000 psi) and a flow capacity of 227 L/min (60 USgpm). It features a 1/2" port size and is part of the Vickers CV1-10 series.

SKU: 02-161212

Supplier Part Number (MPN): 02-161212

Specifications

Actuator Type Direct Acting	Body Material Aluminum	Connection Type SAE	Dimensions 2.31 in L x 2 in W x 1.25 in H	Domestic/Import Import	End Type SAE	Language English	Mounting Type Screw-In	Nominal Size 10	Number of Ports/Ways 2-Port	Seal Material Buna-N	Segment Code C	Series CV1-10 Series	Style Poppet

Product Questions & Answers (2)

Question by: Harvey S on Dec 30, 2025, 10:49 AM

Got a CV1-10-P-8T-5 sitting in front of me and I'm trying to figure out if this thing'll handle the pressure we're running on our refuse hauler. What's the max this valve can take?

Answer by: Customer Support on Dec 31, 2025, 11:24 AM

Running it on a refuse hauler is exactly the kind of application this valve was built for. Pressure-wise, you're good up to 350 bar, which works out to 5000 psi. Flow capacity tops out at 227 liters per minute, or 60 US gallons per minute. For most refuse hauler hydraulic circuits, that's more than enough headroom to work with.

Question by: Clint W on Jan 29, 2026, 7:45 PM

Reckon this would hold up okay in a hydraulic system on a cotton picker, seeing as how they vibrate so much?

Answer by: Customer Support on Jan 31, 2026, 6:04 AM

This Vickers check valve is built for both mobile and industrial jobs, which includes stuff like harvesters where you’d expect a good bit of vibration. It’s rated to handle up to 5000 psi, so it should be able to manage the pressure spikes you might see in a vibrating system.
