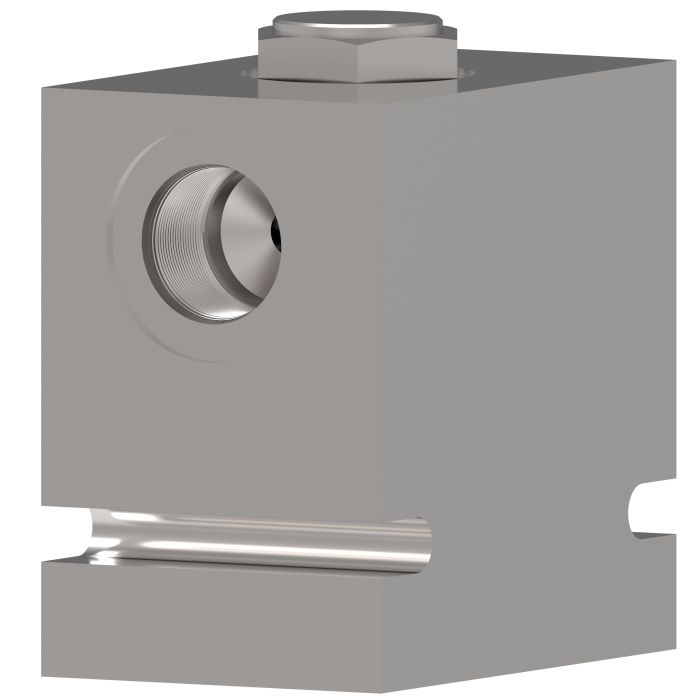

VICKERS CV2 20 P 16H 5

Description & Features

Rated for 350 bar (5,000 psi) and a flow capacity of 227 L/min (60 USgpm), the Vickers CV2 20 P 16H 5 is a poppet-style check valve designed for demanding mobile and industrial hydraulic circuits. The 1-inch port size suits a wide range of mid- to high-flow applications, and low spring settings support efficient pressure response with minimal back-pressure drop.

This CV2-20 Series valve is well suited for use in harvesters, refuse haulers, and general industrial hydraulic systems where reliable one-directional flow control is required. High operational efficiency and a robust pressure rating make it a practical choice for mobile equipment subject to variable load and flow conditions.

SKU: 02-161296

Supplier Part Number (MPN): 02-161296

Specifications

Actuator Type Direct Acting	Body Material Aluminum	Cavity C-20-2	Connection Type SAE	Dimensions 4 in L x 1.87 in W x 4.55 in H	Domestic/Import Import	End Type SAE	Housing With Housing	Installation Type Screw-In Cartridge	Language English	Mounting Type Screw-In	Nominal Size #20	Number of Ports/Ways 2-Port	Pilot Piston Seal Without Pilot Piston Seal	Port Type SAE	Seal Material Buna-N	Series CV2-20 Series	Style Poppet

Product Questions & Answers (1)

Question by: Johnny P on Sep 24, 2025, 12:23 PM

How much flow can this handle? Sixty gallons a minute sound right?

Answer by: Customer Support on Sep 25, 2025, 4:08 PM

That's correct, this Vickers CV2-20 check valve is rated up to 227 liters per minute, which equals about 60 US gallons per minute.
