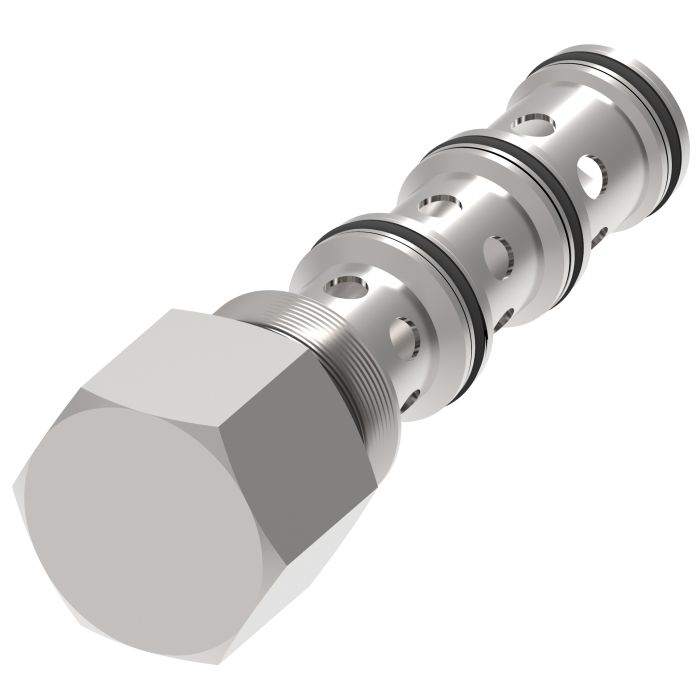

VICKERS PTS3 10V 0 40

Ask A Question

Description & Features

Designed for demanding mobile and industrial environments, the Vickers PTS3 10V 0 40 is a spool-style directional control valve rated for pressures up to 350 bar (5,000 psi) with a flow capacity of 265 L/min (70 USgpm). The compact, economical design makes it well suited for applications where space is limited without sacrificing performance or flexibility.

With a rated flow of 30 litres per minute, this valve is part of the Vickers PTS3-10 series and is commonly used in harvesters, refuse haulers, and a range of mobile and industrial hydraulic systems. The spool configuration supports reliable directional control across varied duty cycles, and the series is recognized for its balance of functional range and minimal installation footprint.

SKU: 02-163625

Supplier Part Number (MPN): 02-163625

Specifications

Actuator Type
Hydraulic, Pilot Operated
Cavity
C-10-4
Detent Option
Without Detent
Dimensions
3.18 in L x 1 in W x 1 in H
Domestic/Import
Import
Function
Pilot to Shift Valve
Housing
Without Housing
Installation Type
Screw-In Cartridge
Language
English
Number of Ports/Ways
4-Port, 3-Way
Number of Positions
2
Port Type
Cartridge
Seal Material
FKM
Series
PTS3-10 Series
Style
Spool

Product Questions & Answers (2)

Sign In Hover me Please sign in to submit a question
Question by: Earl C on Aug 27, 2025, 2:08 PM
flow rating on this says 30 L/min but the specs also mention 265 L/min at 70 USgpm, which one actually applies to how this valve performs in the field?
Answer by: Customer Support on Aug 29, 2025, 8:02 AM
Both numbers are part of the same product but they describe different things. The 30 litres per minute is the rated flow for this specific valve configuration, which is the number that matters for sizing and system design. The 265 L/min figure reflects the broader series capacity, meaning other configurations in the PTS3-10 lineup can handle higher flow. For your application, plan around the 30 L/min rated flow for this particular unit.
Question by: Scott F on Jun 14, 2025, 1:26 PM
Will this directional control valve work alright on my harvester?
Answer by: Customer Support on Jun 16, 2025, 6:17 AM
It's commonly used in harvesters, as well as refuse haulers, so it should be a good fit, provided your system is within the pressure and flow ratings.
