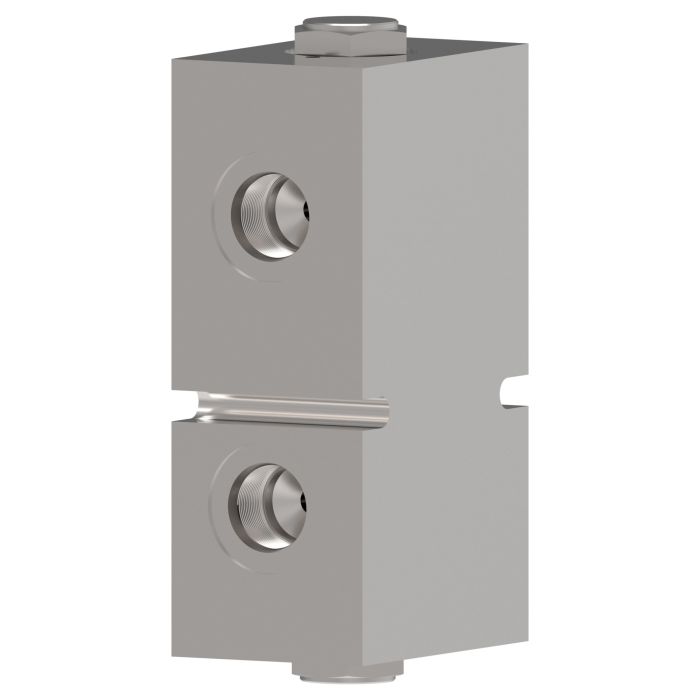

VICKERS DPC1-10S-P-6T

Description & Features

Designed for demanding mobile and industrial environments, the Vickers DPC1-10S-P-6T is a poppet-style check valve built for reliable flow control in harvesters, refuse haulers, and comparable hydraulic systems. It features a 3/8" port size and supports flow rates up to 45 litres per minute under standard conditions.

Rated to 350 bar (5,000 psi) with a maximum flow capacity of 227 L/min (60 USgpm) across the DPC1-10 series, this valve is well-suited to high-pressure mobile circuits where consistent, low-leakage performance is required. Low spring settings contribute to efficient operation across a wide range of circuit demands. Part of the Vickers by Danfoss/Eaton SICV check valve range, it reflects proven engineering for both mobile and stationary industrial applications.

SKU: 02-163707

Supplier Part Number (MPN): 02-163707

Alternate Part Numbers: DPC1-10S-P-6T

Specifications

Actuator Type Double Pilot	Body Material Aluminum	Connection Type SAE	Dimensions 2.5 in L x 5.16 in W x 1.34 in H	End Type SAE	Language English	Mounting Type Screw-In	Nominal Size 10	Number of Ports/Ways 4-Port	Seal Material Buna-N	Series DPC1-10 Series	Style Poppet

Product Questions & Answers (1)

Question by: Curt T on Apr 6, 2025, 8:11 PM

So, this is a poppet style check valve, right? What does that actually mean for how it works?

Answer by: Customer Support on Apr 8, 2025, 6:08 AM

Poppet-style check valves like this Vickers DPC1-10S-P-6T use a poppet, or a cone-shaped plug, to control flow. The valve opens when pressure is applied in the correct direction, pushing the poppet open and allowing flow. When the pressure drops or reverses, the spring pushes the poppet back into its seat, sealing the valve and preventing backflow.
