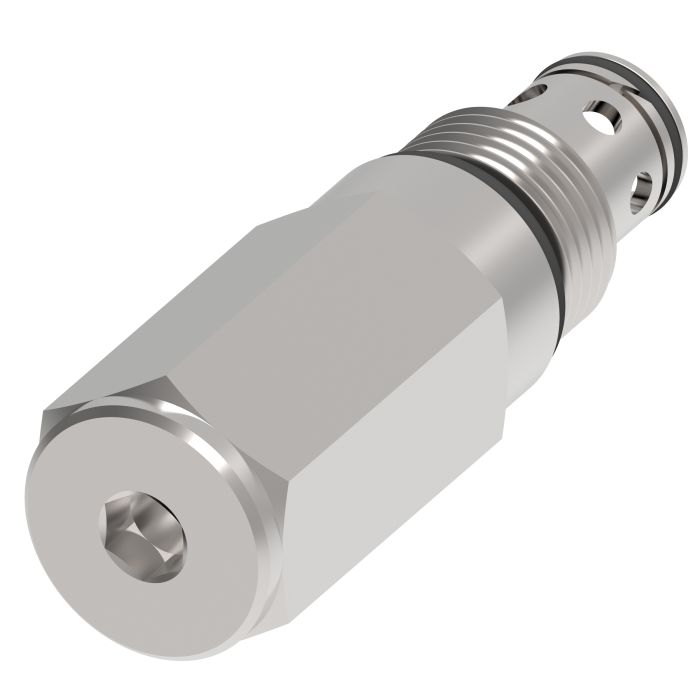

VICKERS RV1 10 I 0 36/26

Description & Features

Designed for mobile and industrial hydraulic circuits, the Vickers RV1 10 I 0 36/26 is a poppet-style pressure control valve suited for demanding applications including harvesters and refuse haulers. The poppet construction provides reliable sealing and consistent pressure regulation across a wide range of duty cycles.

Rated to 350 bar (5,000 psi) with a flow capacity up to 300 L/min (80 US gpm), this valve is built for high-pressure systems where dependable pressure control is critical. The unit operates at a flow rate of 30 litres per minute and is engineered for compact installation, making it well suited to space-constrained mobile equipment and industrial machinery alike. Manufactured under the Vickers brand by Danfoss/Eaton, it combines a proven design with broad application flexibility.

SKU: 02-163955

Supplier Part Number (MPN): 02-163955

Specifications

Actuator Type Direct Acting	Dimensions 3.33 in L x 1 in W x 1 in H	Domestic/Import Import	Installation Type Screw-In Cartridge	Nominal Size 10	Number of Ports/Ways 2-Port	Seal Material Buna-N	Segment Code A	Series RV1-10 Series	Style Poppet

Product Questions & Answers (1)

Question by: Gene S on Jun 10, 2025, 5:01 PM

Running a refuse hauler and the pressure relief on it keeps giving us grief. This RV1 a poppet-style unit?

Answer by: Customer Support on Jun 12, 2025, 6:24 AM

poppet construction all the way through. That style tends to seal up cleaner and hold pressure more consistently than spool-based relief valves, especially on equipment that sees a lot of hard cycling like refuse trucks. The RV1 is rated to 350 bar (5,000 psi) and handles flow up to 300 L/min (80 gpm), so it's got plenty of headroom for the kind of demand a hauler puts on it.
