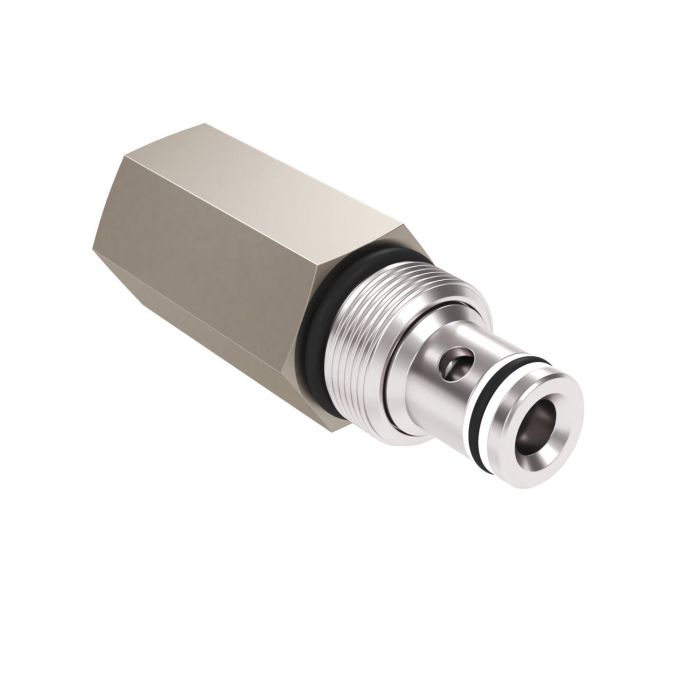

VICKERS RV5 10 S 0 35/22

Ask A Question

Description & Features

Designed for demanding mobile and industrial applications, the Vickers RV5 10 S 0 35/22 is a spool-style pressure control valve rated to 350 bar (5,000 psi) with a flow rate of 114 litres per minute. Its compact form factor makes it well suited for installations where space is limited, including harvesters, refuse haulers, and a wide range of mobile hydraulic equipment.

Part of the Vickers by Danfoss/Eaton RV5-10 series, this valve is built for reliability and flexibility across varying system pressures and flow demands. The spool-type design supports consistent pressure regulation, and the series accommodates flows up to 300 L/min (80 USgpm) across its range, giving system designers room to specify appropriately for the application.

SKU: 02-163997

Supplier Part Number (MPN): 02-163997

Specifications

Brand
Vickers by Danfoss
Actuator Type
Pilot Operated
Adjustment Type
Screw
Cavity
C-10-2
Dimensions
4.38 in L x 1 in W x 1 in H
Domestic/Import
Import
Housing
Without Housing
Installation Type
Screw-In Cartridge
Nominal Size
10
Number of Ports/Ways
2-Port
Port Type
Cartridge
Seal Material
Buna-N
Series
RV5-10 Series
Style
Spool

Product Questions & Answers (1)

Question by: Travis H on Aug 2, 2025, 1:47 PM
flow rate on this one is listed at 114 litres per minute -- is that the max it'll handle or just the rated flow for this particular model in the series?
Answer by: Customer Support on Aug 3, 2025, 6:44 PM
114 litres per minute is the rated flow for this specific valve. The broader RV5-10 series can handle flows up to 300 L/min across its range, so there are other models in that lineup built for higher flow demands. If your system is running right at or under 114 L/min, this unit is the right fit. Pushing it beyond its rated flow isn't something you'd want to do on a regular basis.
