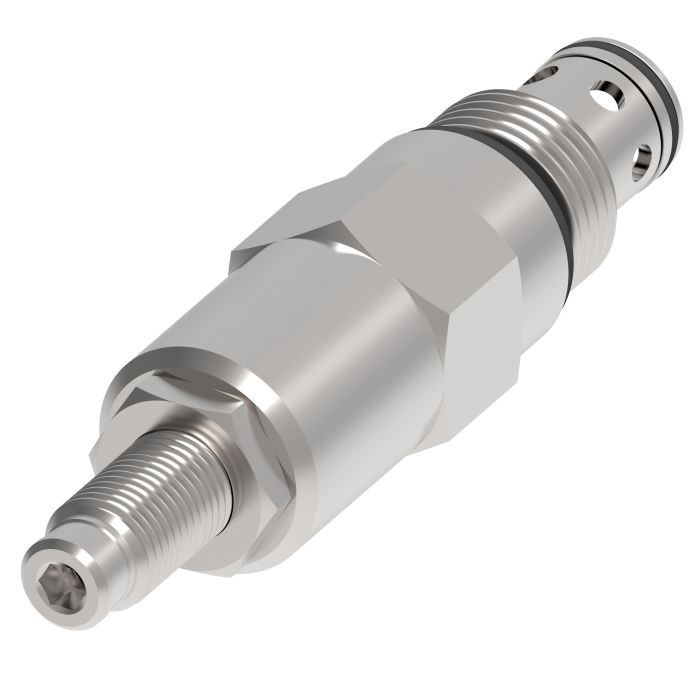

VICKERS RV5 16 S 0 30/30

Description & Features

Rated to 350 bar (5000 psi) with a flow capacity of 300 L/min (80 USgpm), the Vickers RV5 16 S 0 30/30 is a spool-style pressure control valve built for demanding mobile and industrial hydraulic systems. Its compact footprint makes it well suited to space-constrained installations, while the design supports maximum configuration flexibility across a range of mounting arrangements.

Part of the Vickers by Danfoss/Eaton RV5-16 series, this valve is commonly used in harvesters, refuse haulers, and both mobile and stationary industrial equipment. The spool construction delivers reliable, repeatable pressure control in high-cycle environments where consistent performance is critical.

SKU: 02-164162

Supplier Part Number (MPN): 02-164162

Alternate Part Numbers: RV516S030/30

Specifications

Brand Vickers by Danfoss	Actuator Type Pilot Operated	Adjustment Type Screw	Cavity C-16-2	Dimensions 4.12 in L x 1.5 in W x 1.5 in H	Domestic/Import Import	Installation Type Screw-In Cartridge	Nominal Size #16	Number of Ports/Ways 2-Port	Seal Material Buna-N	Segment Code A	Series RV5-16 Series	Style Spool

Product Questions & Answers (1)

Question by: Wayne W on Mar 19, 2026, 6:19 AM

Been running this on a refuse hauler and it holds pressure real steady, but curious what the actual rated limits are on this thing, flow and pressure both?

Answer by: Customer Support on Mar 21, 2026, 6:14 AM

Rated at 350 bar, which works out to 5000 psi, and it'll handle up to 300 liters per minute, or 80 US gallons per minute. For a refuse hauler running hard cycles, those numbers give you solid headroom without having to worry about the valve being the weak link in the circuit.
