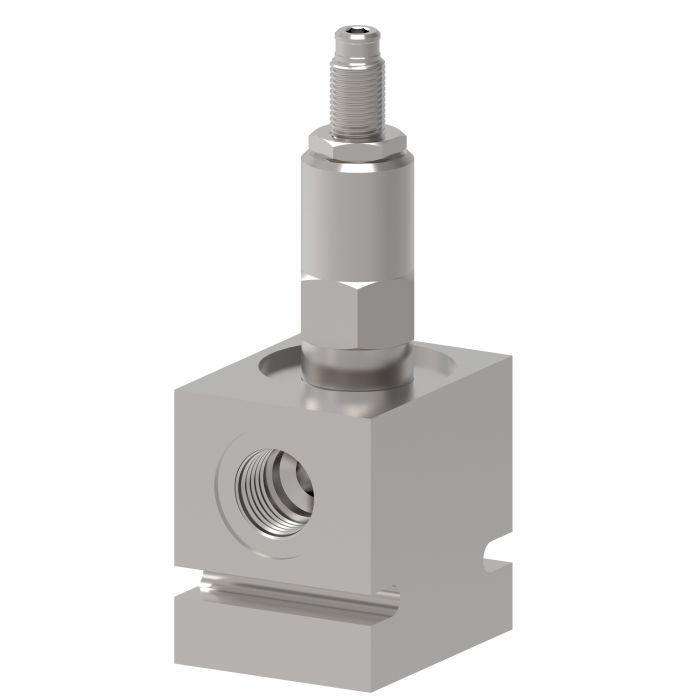

VICKERS RV5-10-S-8T-20/

Description & Features

Vickers RV5-10-S-8T-20/ pressure control valves are reliable, economical, and compact, offering maximum flexibility in a minimum of space. These spool style valves are designed for a range of applications, including use in mobile and industrial applications, as well as in harvesters and refuse haulers.

These Vickers valves feature a 1/2" port size and a flow rate of 114 liters per minute. They are capable of handling pressures up to 350 bar (5000 psi) and 300 L/min (80 USgpm).

SKU: 02-164188

Supplier Part Number (MPN): 02-164188

Specifications

Brand Vickers by Danfoss	Actuator Type Pilot Operated	Adjustment Type Screw	Body Material Steel	Cavity C-10-2	Connection Type SAE	Dimensions 2.5 in L x 1.74 in W x 5.63 in H	Domestic/Import Import	End Type SAE	Housing With Housing	Installation Type Screw-In Cartridge	Nominal Size 10	Number of Ports/Ways 2-Port	Port Type SAE	Seal Material Buna-N	Series RV5-10 Series	Style Spool

Product Questions & Answers (1)

Question by: Dwight R on Jun 2, 2025, 5:36 PM

Got a refuse hauler that's been giving us fits with pressure spikes. Would the RV5-10-S-8T-20 hold up to that kind of work, or is this more of a light-duty valve?

Answer by: Customer Support on Jun 4, 2025, 10:05 AM

Refuse hauler work is actually one of the applications this valve is built around, so pressure spikes are well within its territory. It's rated to handle up to 350 bar (5000 psi) and flows up to 300 liters per minute (80 USgpm), which gives you solid headroom for the kind of demands that come with that equipment. The spool-style design keeps it compact without sacrificing performance, so you're not giving anything up by going with a smaller package.
