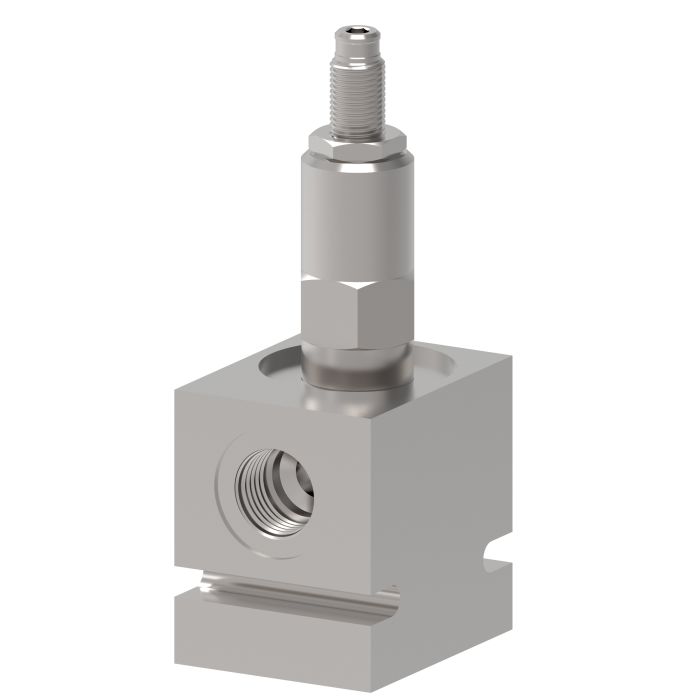

main product photo

VICKERS RV5 10 S 6T 35/

Ask A Question

Description & Features

Designed for mobile and industrial hydraulic systems, this spool-style pressure control valve handles flow rates up to 114 litres per minute and is rated for pressures up to 350 bar (5,000 psi). The VICKERS RV5 10 S 6T 35/ features a compact form factor suited to installations where space is limited, with a 3/8" port size that fits common hydraulic circuit configurations.

Typical applications include harvesters, refuse haulers, and a broad range of mobile and stationary hydraulic equipment. Manufactured under the Eaton Vickers brand, this valve belongs to the RV5-10 series of pressure control valves, which are known for combining reliable performance with an economical, space-efficient design.

SKU: 02-164191

Supplier Part Number (MPN): 02-164191

Alternate Part Numbers: RV510S6T35/

Specifications

Brand
Vickers by Danfoss
Actuator Type
Pilot Operated
Adjustment Type
Screw
Body Material
Steel
Cavity
C-10-2
Connection Type
SAE
Dimensions
2.5 in L x 1.74 in W x 5.63 in H
Domestic/Import
Import
End Type
SAE
Housing
With Housing
Installation Type
Screw-In Cartridge
Nominal Size
10
Number of Ports/Ways
2-Port
Port Type
SAE
Seal Material
Buna-N
Segment Code
B
Series
RV5-10 Series
Style
Spool

Product Questions & Answers (1)

Question by: Vince J on Aug 9, 2025, 8:50 AM
got a tight spot on a harvester, is this RV5-10 valve the compact style or is it a big ol chunk?
Answer by: Customer Support on Aug 10, 2025, 7:47 PM
Space-wise, it fits the compact category. The RV5-10 series is called out as reliable, economical, and compact, and it is also described as giving maximum flexibility while taking up minimum space.
