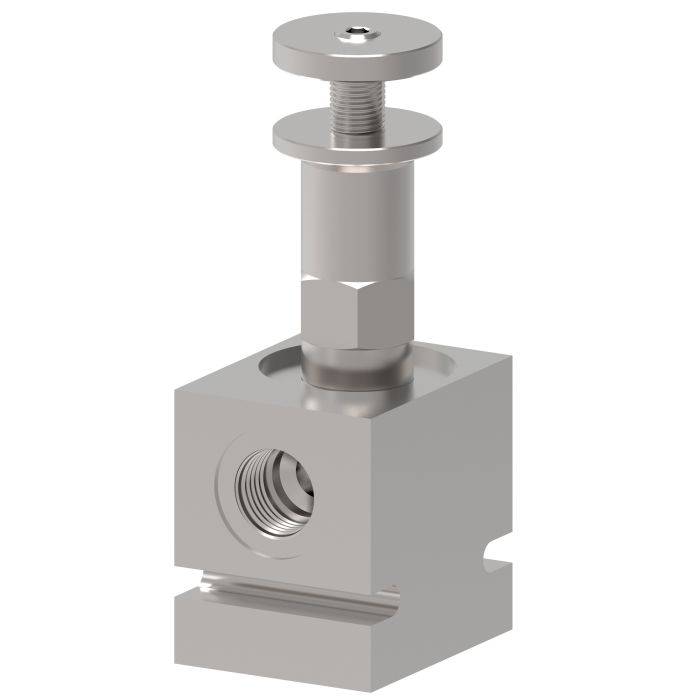

main product photo

VICKERS RV5-10-K-8T-50/

Ask A Question

Description & Features

Designed for mobile and industrial hydraulic circuits, the Vickers RV5-10-K-8T-50/ is a spool-style pressure control valve built to handle demanding applications including harvesters and refuse haulers. It supports a flow rate of 114 litres per minute through a 1/2" port, delivering reliable pressure regulation in a compact, space-efficient package.

Part of the Vickers by Eaton/Danfoss RV5-10 series, this valve is rated to 350 bar (5,000 psi) with a series capacity of up to 300 L/min (80 USgpm), making it well suited to high-pressure industrial and mobile hydraulic systems where consistent performance and installation flexibility are priorities. The compact spool design minimises space requirements without compromising flow or pressure handling capability.

SKU: 02-164224

Supplier Part Number (MPN): 02-164224

Specifications

Brand
Vickers by Danfoss
Actuator Type
Pilot Operated
Adjustment Type
Knob
Body Material
Steel
Cavity
C-10-2
Connection Type
SAE
Dimensions
2.5 in L x 1.74 in W x 5.63 in H
Domestic/Import
Import
End Type
SAE
Housing
With Housing
Installation Type
Screw-In Cartridge
Nominal Size
10
Number of Ports/Ways
2-Port
Port Type
SAE
Seal Material
Buna-N
Series
RV5-10 Series
Style
Spool

Product Questions & Answers (2)

Question by: Clint C on Jan 7, 2026, 12:15 PM
Got a harvester sitting down waiting on a pressure control valve, and I need to know if this one'll handle 114 litres per minute through a half-inch port. That right?
Answer by: Customer Support on Jan 8, 2026, 8:12 PM
Yeah, 114 litres per minute through a 1/2" port is exactly what this valve is rated for. It's a spool-style unit from the Vickers RV5-10 series, so it's built with that kind of flow in mind. The series itself goes up to 300 L/min capacity, but this particular configuration is set for 114 LPM. Should be a straight fit for what you're running.
Question by: Lee C on Oct 8, 2025, 5:38 PM
What size is that port? Is it standard?
Answer by: Customer Support on Oct 10, 2025, 6:41 AM
It has a 1/2" port. As far as whether it's "standard," that would depend on your specific application, but 1/2" is a pretty common size for hydraulic systems.
