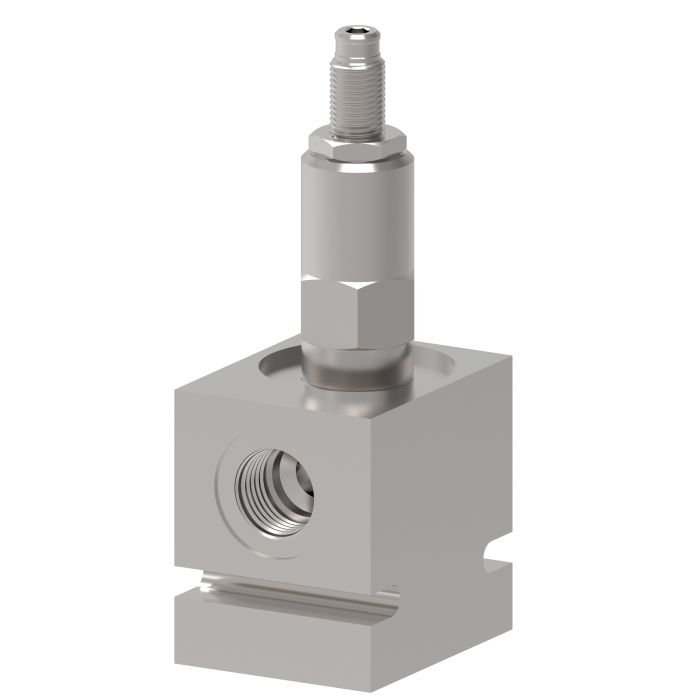

VICKERS RV1 10 S 6T 3/

Ask A Question

Description & Features

Vickers RV1 10 S 6T 3/ pressure control valves are reliable, economical, and compact. These poppet style valves offer maximum flexibility while occupying a minimum of space.

This Vickers by Danfoss / Eaton RV1-10 Series Pressure Control Valve is suitable for use in mobile and industrial applications such as harvesters and refuse haulers. It offers a flow rate of 30 liters per minute and a maximum pressure of 350 bar (5000 psi).

SKU: 02-164542

Supplier Part Number (MPN): 02-164542

Specifications

Actuator Type
Direct Acting
Adjustment Type
Screw
Body Material
Steel
Cavity
C-10-2
Connection Type
SAE
Dimensions
2.5 in L x 2 in W x 5.8 in H
Domestic/Import
Import
End Type
SAE
Housing
With Housing
Installation Type
Screw-In Cartridge
Nominal Size
10
Number of Ports/Ways
2-Port
Port Type
SAE
Seal Material
Buna-N
Series
RV1-10 Series
Style
Poppet

Product Questions & Answers (2)

Sign In Hover me Please sign in to submit a question
Question by: Daryl E on Mar 22, 2026, 11:52 AM
Got a harvester throwing high pressure fits and need a compact relief valve that won't eat up a bunch of real estate on the manifold, this RV1 poppet style hold up to 5000 psi?
Answer by: Customer Support on Mar 24, 2026, 9:57 AM
Rated at 350 bar, which works out to 5000 psi, so yes it'll handle that pressure load. The poppet style design keeps the footprint small, which matters when you're working around tight manifold layouts on harvest equipment. Flow capacity on this particular valve is 30 liters per minute, so just make sure that lines up with what your system is pulling through.
Question by: Brent T on Nov 4, 2025, 5:33 PM
Is this control valve alright for equipment that's run pretty hard, like all day long?
Answer by: Customer Support on Nov 6, 2025, 1:24 PM
Built to withstand demanding industrial and mobile applications, the Vickers RV1-10 series pressure control valves are definitely suitable for continuous operation in equipment like harvesters and refuse haulers. Just make sure the pressure and flow rates are within the valve's specified limits.
