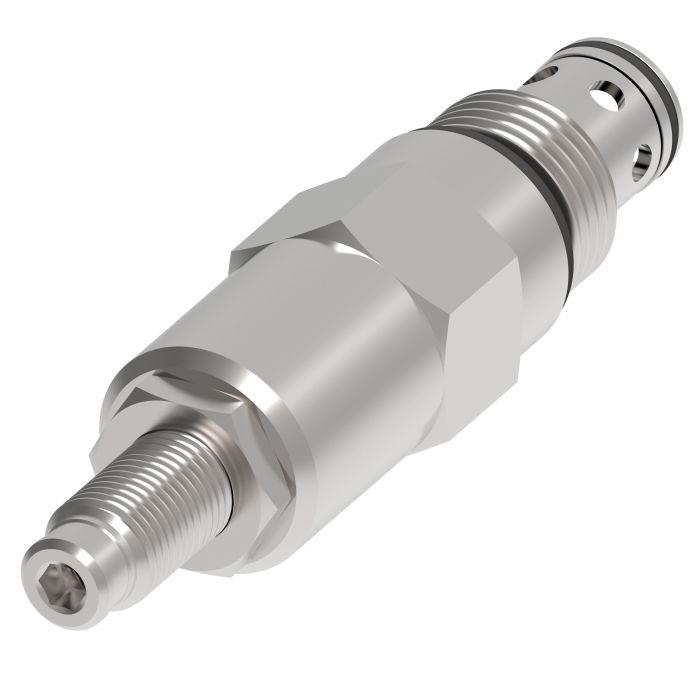

VICKERS RV1 10 S 0 9/5

Description & Features

The Vickers RV1 10 S 0 9/5 pressure control valve is a reliable, economical, and compact solution for mobile and industrial applications, as well as use in harvesters and refuse haulers. Designed with maximum flexibility and minimum space requirements in mind, this poppet-style valve offers a flow rate of 30 liters per minute and can handle pressures up to 350 bar (5000 psi) and 300 L/min (80 USgpm).

SKU: 02-164548

Supplier Part Number (MPN): 02-164548

Specifications

Actuator Type Direct Acting	Dimensions 4.38 in L x 1 in W x 1 in H	Domestic/Import Import	Installation Type Screw-In Cartridge	Nominal Size 10	Number of Ports/Ways 2-Port	Seal Material Buna-N	Series RV1-10 Series	Style Poppet

Product Questions & Answers (2)

Question by: Neil C on Jun 5, 2025, 3:47 PM

runs up to 350 bar you said, but what's the actual flow this valve is rated to handle at full pressure?

Answer by: Customer Support on Jun 7, 2025, 6:54 AM

At full rated pressure of 350 bar (5000 psi), the valve is built to handle up to 300 liters per minute, which works out to about 80 US gallons per minute. The 30 liters per minute figure you may also see refers to a separate flow specification tied to this particular model configuration. So for high-demand circuits running near that pressure ceiling, the 300 L/min capacity is what gives you the real headroom on flow.

Question by: Billy S on Nov 6, 2025, 2:06 PM

What kind of applications would this valve be good for?

Answer by: Customer Support on Nov 8, 2025, 6:11 AM

This Vickers RV1-10 series pressure control valve works well in mobile and industrial applications. It's also found in harvesters and refuse haulers.
