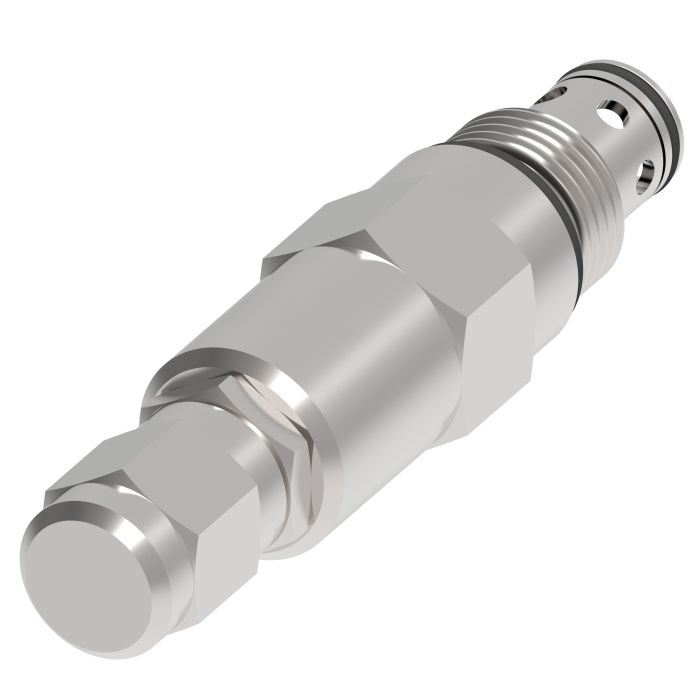

VICKERS RV1 10 C 0 9/4.5

Description & Features

Designed for demanding mobile and industrial environments, the Vickers RV1 10 C 0 9/4.5 is a poppet-style pressure control valve suited for use in harvesters, refuse haulers, and a broad range of mobile and industrial hydraulic circuits. The poppet construction provides reliable sealing and consistent pressure response across varying load conditions.

Rated for flows up to 30 litres per minute, this valve is part of the Vickers RV1-10 series, which supports system pressures up to 350 bar (5000 psi) and series flow capacity up to 300 L/min (80 USgpm). Its compact form factor allows installation where space is limited, while the design keeps configuration flexible across different mounting arrangements.

SKU: 02-164619

Supplier Part Number (MPN): 02-164619

Specifications

Actuator Type Direct Acting	Adjustment Type Cap	Cavity C-10-2	Dimensions 4.38 in L x 1 in W x 1 in H	Domestic/Import Import	Housing Without Housing	Installation Type Screw-In Cartridge	Nominal Size 10	Number of Ports/Ways 2-Port	Port Type Cartridge	Seal Material Buna-N	Series RV1-10 Series	Style Poppet

Product Questions & Answers (1)

Question by: Neal A on Sep 17, 2025, 11:20 AM

What kind of valve is this exactly, and would it hold up in a refuse hauler runnin pretty hard day in and day out?

Answer by: Customer Support on Sep 18, 2025, 2:07 PM

Poppet-style construction is what sets this one apart from spool-based valves. The poppet design gives you tighter, more reliable sealing and keeps pressure response consistent even when loads are shifting around, which is exactly the kind of behavior you want in a refuse hauler that's cycling constantly. Vickers lists that application specifically for this valve, along with harvesters and other demanding mobile equipment, so it's well within its intended territory.
