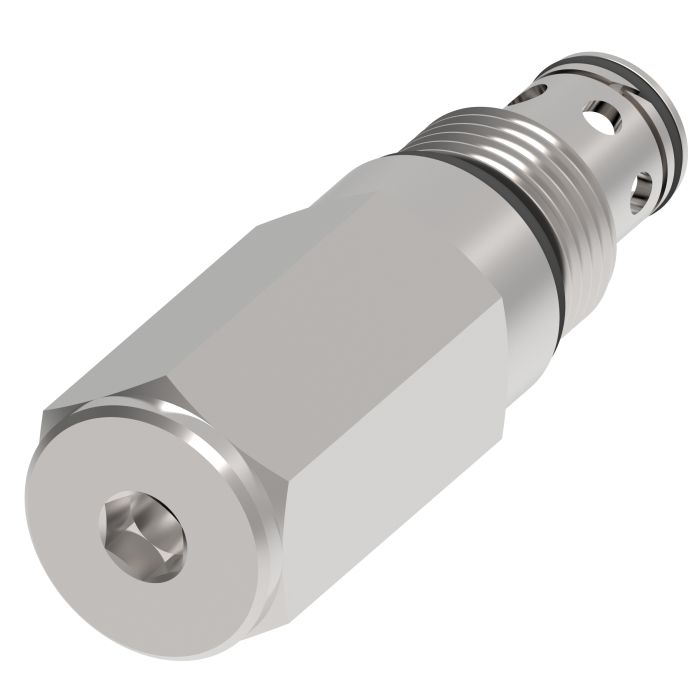

VICKERS RV1 10 I 0 36/22

Description & Features

The Vickers RV1 10 I 0 36/22 is a versatile pressure control valve designed for high-demand applications such as harvesters, refuse haulers, and other mobile or industrial settings. This poppet-style valve operates efficiently at a maximum pressure of 350 bar (5000 psi) and can handle a flow rate of up to 30 liters per minute, ensuring reliable performance even in challenging conditions. Its compact and economical design offers both maximum flexibility and minimal space requirements, making it an excellent choice for systems where space is at a premium.

Manufactured by Vickers, a trusted name in hydraulic solutions, this valve is part of the RV1-10 Series and is engineered for robust performance and longevity. With a flow capacity of 300 L/min (80 USgpm), it accommodates a wide range of hydraulic applications. Although it features no specific port size, its adaptability makes it suitable for various configurations, enhancing its utility across different sectors.

SKU: 02-164910

Supplier Part Number (MPN): 02-164910

Specifications

Actuator Type Direct Acting	Adjustment Type Internal	Cavity C-10-2	Dimensions 3.33 in L x 1 in W x 1 in H	Domestic/Import Import	Housing Without Housing	Installation Type Screw-In Cartridge	Nominal Size 10	Number of Ports/Ways 2-Port	Port Type Cartridge	Seal Material Buna-N	Series RV1-10 Series	Style Poppet

Product Questions & Answers (2)

Question by: Jerry C on Nov 22, 2025, 6:57 PM

Will this valve hold up on my harvester, running it pretty hard most days?

Answer by: Customer Support on Nov 24, 2025, 6:14 AM

Designed for high-demand applications like harvesters, this pressure control valve can handle a maximum pressure of 350 bar (5000 psi) and a flow rate up to 30 liters per minute. So it should provide reliable performance even under challenging conditions.

Question by: Randy H on Aug 7, 2025, 6:51 PM

Running a refuse hauler and been hunting for a pressure control valve that won't eat up a ton of real estate in the system. This RV1 series hold up to 5000 psi?

Answer by: Customer Support on Aug 9, 2025, 3:38 PM

Rated at 350 bar, which works out to 5000 psi, so yes it handles that pressure range. The poppet-style design keeps things compact, which works well when you're fitting components into tight quarters on mobile equipment like refuse haulers. Flow capacity tops out at 300 liters per minute, so it's got plenty of headroom for demanding hydraulic circuits.
