VICKERS RV1 10 I 0 36/21

Description & Features

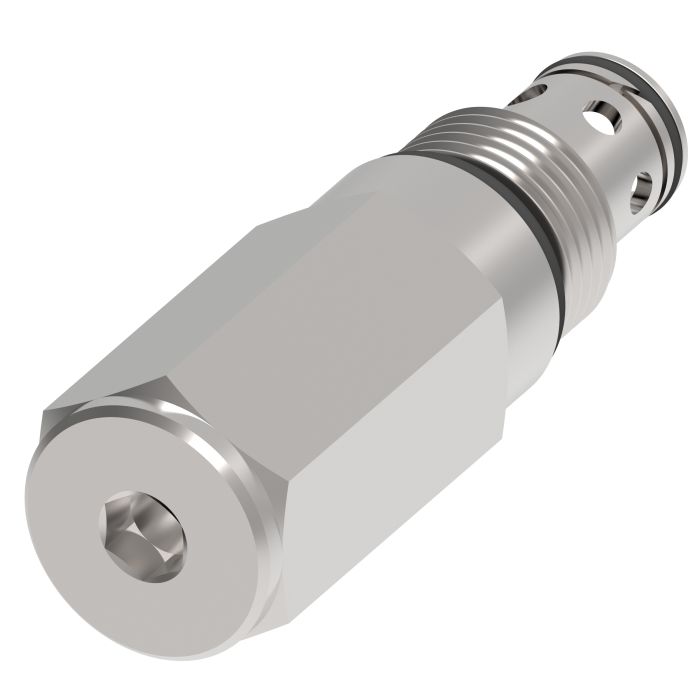

The Vickers RV1 10 I 0 36/21 pressure control valve, part of the Vickers by Danfoss / Eaton RV1-10 Series, offers reliable and economical performance in a compact design. This poppet-style valve provides maximum flexibility while minimizing space requirements.

This valve is suitable for mobile and industrial applications, including harvesters and refuse haulers. It is designed to handle a flow rate of 30 liters per minute and pressures up to 350 bar (5000 psi).

SKU: 02-164911

Supplier Part Number (MPN): 02-164911

Specifications

Actuator Type Direct Acting	Adjustment Type Internal	Cavity C-10-2	Dimensions 3.33 in L x 1 in W x 1 in H	Domestic/Import Import	Housing Without Housing	Installation Type Screw-In Cartridge	Nominal Size 10	Number of Ports/Ways 2-Port	Port Type Cartridge	Seal Material Buna-N	Series RV1-10 Series	Style Poppet

Product Questions & Answers (2)

Question by: Janet H on Mar 6, 2026, 4:56 PM

Will this fit on my harvester, or is it more for industrial stuff?

Answer by: Customer Support on Mar 8, 2026, 7:21 AM

It's designed for both mobile applications like harvesters and industrial uses, so it should work for you.

Question by: Danny G on Apr 24, 2025, 9:15 AM

Got a harvester that keeps blowing relief valves on the header circuit. Would this RV1-10 hold up to that kind of repeated pressure spikes, and what's the max it's rated for?

Answer by: Customer Support on Apr 25, 2025, 11:59 AM

Pressure spikes on harvester circuits are exactly the kind of duty this valve was built around. It's rated to 350 bar, which is 5000 psi, so it's got solid headroom for most ag hydraulic systems. The poppet-style design helps with that too since poppets tend to respond cleanly to sudden pressure events compared to spool-type valves. Flow capacity on this unit is 30 liters per minute, so just make sure your header circuit stays within that range and you should be in good shape.
