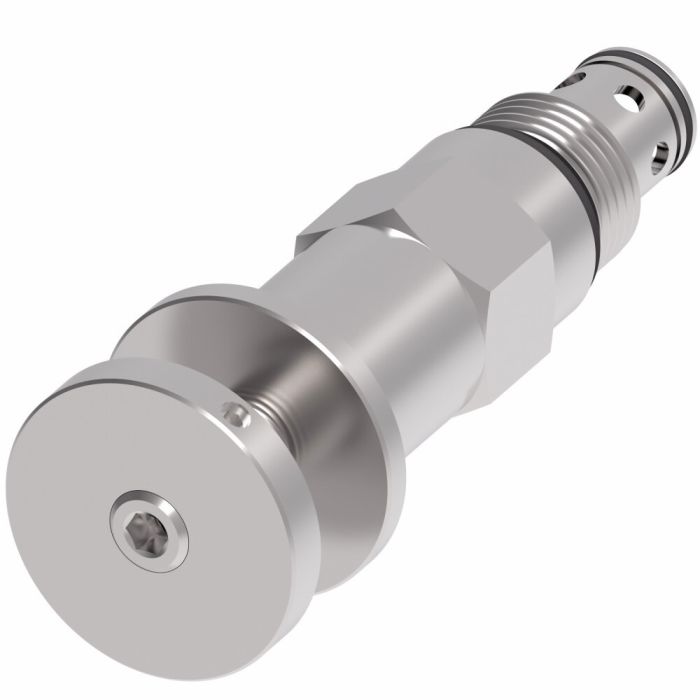

VICKERS FR2 10 K 0 /4.00

Description & Features

Designed for mobile and industrial applications including harvesters and refuse haulers, the Vickers FR2 10 K 0 /4.00 is an adjustable, pressure-compensated flow regulator valve built to handle demanding hydraulic system requirements. With a flow rate of 38 litres per minute, it delivers consistent, regulated flow across varying load conditions.

Part of the Vickers by Danfoss FR2-10 series, this valve is rated to 350 bar (5,000 psi) and supports system flow capacity up to 350 L/min (92 USgpm). Its compact form factor makes it well-suited for installations where space is a consideration, without compromising reliability or performance. The pressure-compensated design maintains a steady output flow regardless of pressure fluctuations upstream or downstream.

SKU: 02-169370

Supplier Part Number (MPN): 02-169370

Specifications

Alternate Part Numbers Alternate Part Number MINO-00569H78766	Application Harvesters, refuse haulers, mobile and industrial applications	Brand Danfoss – Hydraulics	Brand Vickers	Pack Size 1.00	UOM EA	Features 350 bar (5000 psi) & 350 L/min (92 USgpm)\|Perfect balance of pressure and flow\|Reliable, economical and compact	Flow Rate1 38 litre per minute	ICC SICV Flow Control Valves	Language English	Net Pack Quantity Units EA	Product Width 1	Special Features None	Style Adjustable Pressure Compensated, Flow Regulator	Sub Brand Vickers	Supplier Part Number 02-169370	Product Weight 0.48 lbs

Product Questions & Answers (1)

Question by: Neil F on Jun 22, 2025, 1:03 PM

flow rate on this one is listed at 38 L/min -- is that the max output or is that a fixed regulated output the valve holds to?

Answer by: Customer Support on Jun 23, 2025, 2:16 PM

38 litres per minute is the regulated output flow this valve is set to deliver. Being pressure-compensated, it holds that flow steady even when pressure conditions shift upstream or downstream. The system itself can handle up to 350 L/min total capacity, but the valve regulates what passes through it down to that 38 L/min figure. Since it's adjustable, you do have the ability to dial that in, but 38 L/min is the rated working flow for this configuration.
