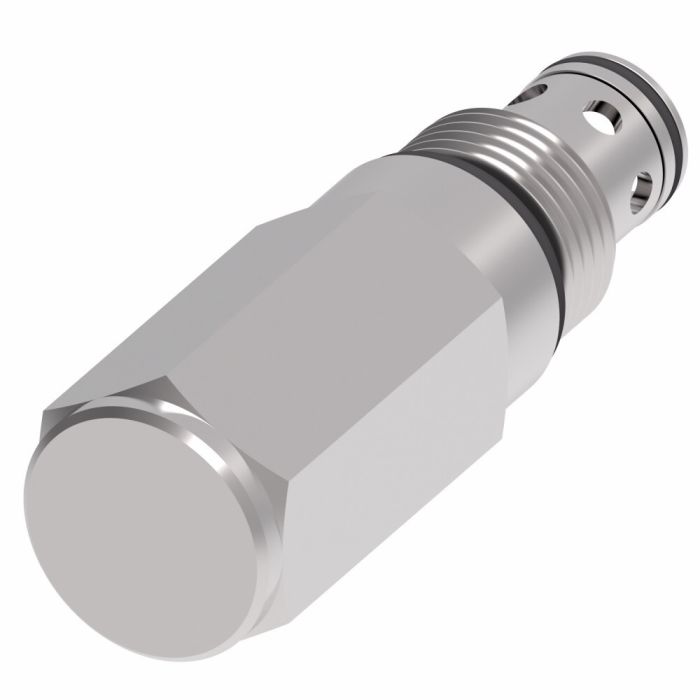

VICKERS FR2 10 F 0 /5.00

Ask A Question

Description & Features

Designed for demanding mobile and industrial environments, the Vickers FR2 10 F 0 /5.00 is an adjustable, pressure-compensated flow regulator valve rated for up to 350 bar (5,000 psi) and flows up to 350 L/min (92 US gpm). With a regulated flow rate of 38 litres per minute, it delivers consistent, controlled output regardless of load-induced pressure variations.

Compact and economical in construction, this valve is well suited for use in harvesters, refuse haulers, and a broad range of mobile and industrial hydraulic circuits where reliable flow regulation is a priority. The pressure-compensated design maintains set flow rates across varying system pressures, reducing the need for constant manual adjustment in dynamic applications.

SKU: 02-169567

Supplier Part Number (MPN): 02-169567

Specifications

Brand
Vickers by Danfoss
Actuator Type
Pressure Compensated
Adjustment Type
Fixed Orifice
Body Material
Aluminum
Cavity
C-10-2
Dimensions
3.34 in L x 1 in W x 1 in H
Domestic/Import
Import
Housing
Without Housing
Mounting Type
Screw-In
Nominal Size
10
Number of Ports/Ways
2-Port
Port Type
Cartridge
Seal Material
Buna-N
Series
FR2-10 Series
Spool Seal
Without Spool Seal
Style
Factory Set

Product Questions & Answers (2)

Question by: Roy W on May 24, 2025, 1:05 PM
Reckon this'll hold up on my refuse truck? We're always messin' with the flow rates.
Answer by: Customer Support on May 26, 2025, 10:02 AM
This Vickers flow regulator is designed to maintain a consistent flow rate even when the pressure changes, which should cut down on the need for constant fiddling on a refuse truck where the load, and therefore the pressure, is always fluctuating.
Question by: Brent C on Aug 27, 2025, 2:34 PM
Flow rate on this one is listed at 38 litres per minute, that gonna hold steady even when system pressure is jumping around on us?
Answer by: Customer Support on Aug 28, 2025, 8:31 PM
Pressure-compensated valves are built specifically for that situation. The FR2 maintains its set flow rate regardless of load-induced pressure changes in the system, so you're not chasing adjustments every time the load shifts. It's rated up to 350 bar and 350 L/min overall, but the regulated output stays at that 38 L/min figure. For mobile equipment like harvesters or refuse haulers where pressure swings are pretty much constant, that consistency is exactly what this valve is designed to deliver.
