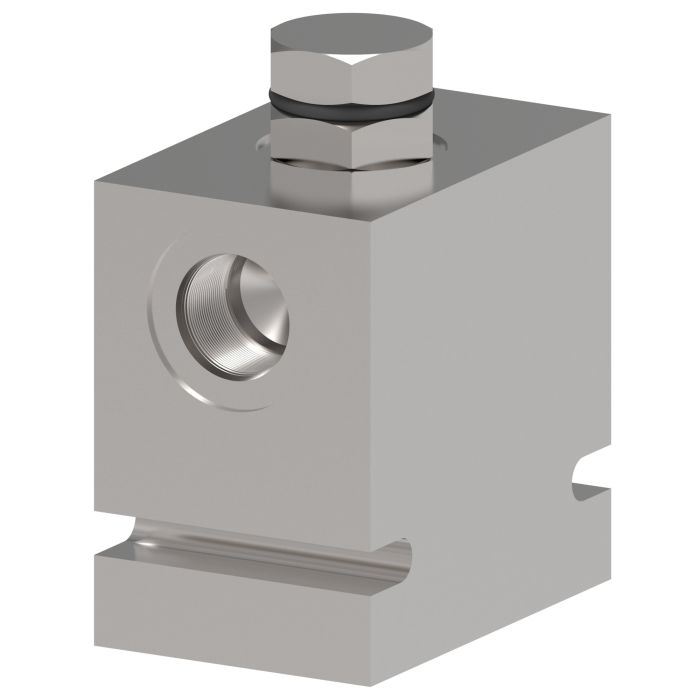

VICKERS PTS7-10-8T-80

Ask A Question

Description & Features

Vickers PTS7-10 series directional control valves offer reliable and economical performance in a compact design. These spool style valves provide maximum flexibility while occupying minimal space.

This valve is suitable for mobile and industrial applications such as harvesters and refuse haulers. It offers a flow rate of 30 liters per minute and a pressure rating of 350 bar (5000 psi), with a maximum flow of 265 liters per minute (70 US GPM). The port size is 1/2". The VICKERS PTS7-10-8T-80 is 2 inches wide.

SKU: 02-169950

Supplier Part Number (MPN): 02-169950

Specifications

Actuator Type
Hydraulic, Pilot Operated
Body Material
Aluminum
Dimensions
3 in L x 2 in W x 3.72 in H
Language
English
Number of Ports/Ways
3-Port, 3-Way
Number of Positions
2
Port Type
SAE
Seal Material
Buna-N
Series
PTS7-10 Series
Style
Spool

Product Questions & Answers (2)

Sign In Hover me Please sign in to submit a question
Question by: Connie B on May 5, 2025, 8:26 PM
Flow rate on this one shows 30 liters per minute, but the specs also mention 265 L/min max. Which number actually matters for sizing this valve to my system?
Answer by: Customer Support on May 7, 2025, 6:04 AM
Both numbers serve a different purpose. The 30 liters per minute is the rated flow for that valve position under normal operating conditions. The 265 L/min figure, which works out to about 70 US GPM, is the maximum flow the valve can handle before you start pushing it past its design limits. For sizing purposes, your system's working flow should stay at or below the 30 L/min rating for reliable directional control. The higher number tells you the ceiling, not the target.
Question by: Roger W on Nov 1, 2025, 11:41 AM
If I'm usin' this on a harvester, will that 30 liter per minute flow rate hold up?
Answer by: Customer Support on Nov 3, 2025, 6:38 AM
That 30 liter per minute flow rate is the standard, but it can handle peaks up to 265 liters per minute if needed. So, it should work well for the harvester application.
