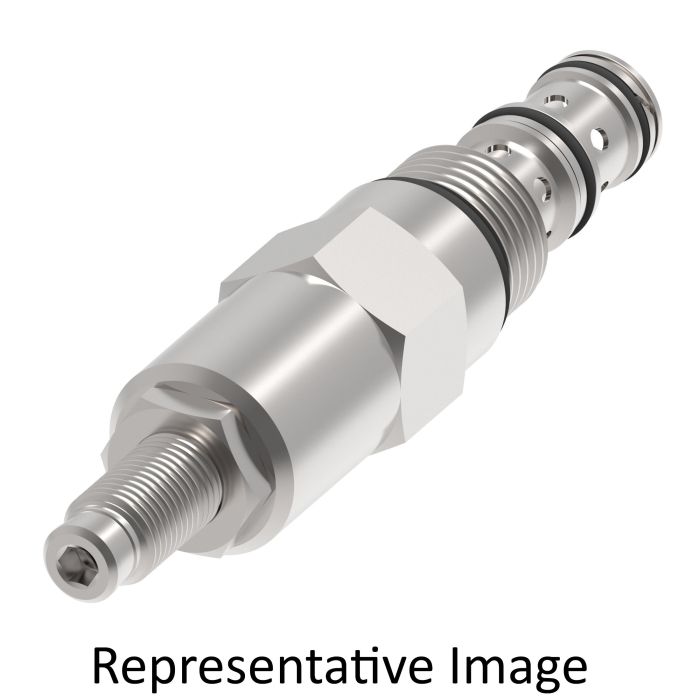

main product photo

VICKERS PRV1 10V S 0 12/6

Ask A Question

Description & Features

Designed for maximum flexibility and efficiency, the Vickers PRV1-10 Series Pressure Control Valve is an ideal solution for demanding applications in harvesters, refuse haulers, and other mobile and industrial settings. With a sturdy spool style construction, this valve provides a reliable flow rate of 15 liters per minute, ensuring optimal performance under high-pressure conditions up to 350 bar (5000 psi). Its compact design allows for easy installation in areas with limited space, making it a cost-effective choice for diverse hydraulic systems.

Manufactured by Vickers, a trusted name in hydraulic components, this valve supports a maximum flow capacity of 300 L/min (80 USgpm), balancing performance with economic efficiency. The PRV1-10V S 0 12/6 model exemplifies robust engineering, crafted for durability and minimal maintenance requirements in industrial environments.

SKU: 02-170782

Supplier Part Number (MPN): 02-170782

Alternate Part Numbers: PRV110VS012/6

Specifications

Brand
Vickers by Danfoss
Actuator Type
Direct Acting
Adjustment Type
Screw
Cavity
C-10-3
Dimensions
4.96 in L x 1 in W x 1 in H
Domestic/Import
Import
Housing
Without Housing
Installation Type
Screw-In Cartridge
Language
English
Nominal Size
10
Number of Ports/Ways
3-Port
Port Type
Cartridge
Seal Material
FKM
Series
PRV1-10 Series
Style
Spool

Product Questions & Answers (1)

Question by: Freddie P on Apr 2, 2026, 4:37 PM
Running a refuse hauler and need a pressure control valve that won't take up a whole lot of real estate in the system. This PRV1-10V handle up to 5000 psi?
Answer by: Customer Support on Apr 4, 2026, 6:56 AM
Rated at 350 bar, which works out to 5000 psi, so yes it'll hold up to that pressure. The compact spool-style build was put together specifically for mobile setups where space is tight, so refuse haulers and similar equipment are right in its wheelhouse. Flow capacity tops out at 300 liters per minute, which gives you plenty of headroom for most mobile hydraulic circuits.
