DPC-2870

Description & Features

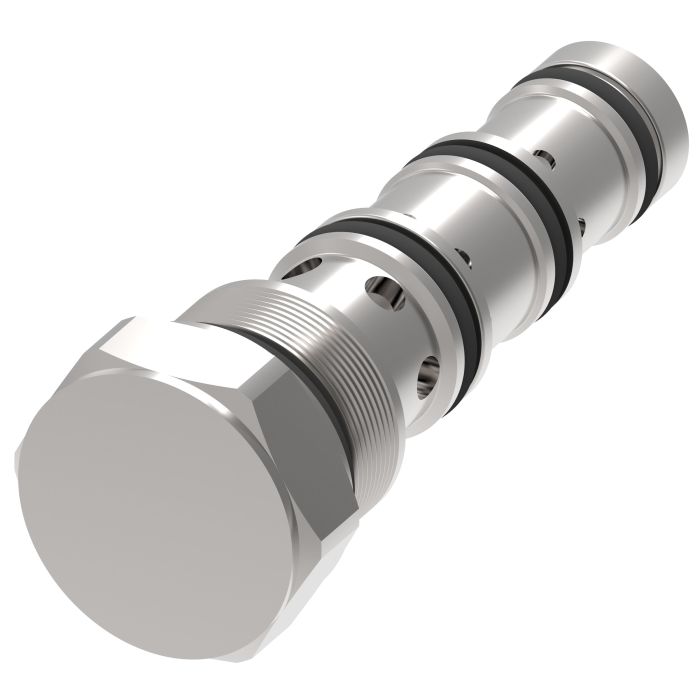

Designed for demanding mobile and industrial environments, the DPC-2870 is a poppet-style check valve from the Vickers by Danfoss Power Solutions DPC Series. Rated to 350 bar (5,000 psi) with flow capacity up to 227 L/min (60 USgpm), it suits high-pressure hydraulic circuits where reliable non-return flow control is required.

Low spring settings support high operational efficiency across a range of duty cycles. Typical applications include harvesters, refuse haulers, and broader mobile and industrial hydraulic systems where consistent performance under variable load conditions is expected.

SKU: 02-170837

Supplier Part Number (MPN): 02-170837

Specifications

Actuator Type Pilot Operated	Cavity C-8-4	Configuration Double Pilot	Connection Type UNF	Dimensions 0.622 in Dia x 2.2 in L	Disc Material Hardened and Ground Steel	Mounting Type Screw-In	Nominal Size 3/4 in	Number of Housing Ports 4	Number of Ports/Ways 4-Way	Number of Valve Ports 4	Operator Type Pilot Operated	Pilot Piston Seal No	Seal Material Urethane	Seat Material Hardened and Ground Steel	Softgoods Material Urethane	Style Poppet

Product Questions & Answers (2)

Question by: Gary O on May 3, 2025, 7:18 PM

What kinda machines would this check valve be good for? I got a harvester that needs a new one.

Answer by: Customer Support on May 4, 2025, 9:50 PM

This poppet-style check valve is typically used in demanding mobile and industrial environments. Refuse haulers are also a common application, in addition to harvesters like yours. It's designed for high-pressure hydraulic circuits where you need reliable non-return flow control.

Question by: Lyle E on Jun 17, 2025, 8:59 PM

Got a harvester that keeps having backflow issues on the hydraulic circuit. Would the DPC-2870 hold up to that kind of work?

Answer by: Customer Support on Jun 19, 2025, 6:29 AM

Poppet-style check valves like this one are well suited for exactly that situation. The DPC-2870 handles up to 350 bar (5,000 psi) and flows up to 227 liters per minute, so a harvester running variable loads shouldn't push it anywhere near its limits. The low spring settings also help keep things running efficiently without fighting the system unnecessarily. It's a solid fit for mobile equipment dealing with inconsistent demand.
