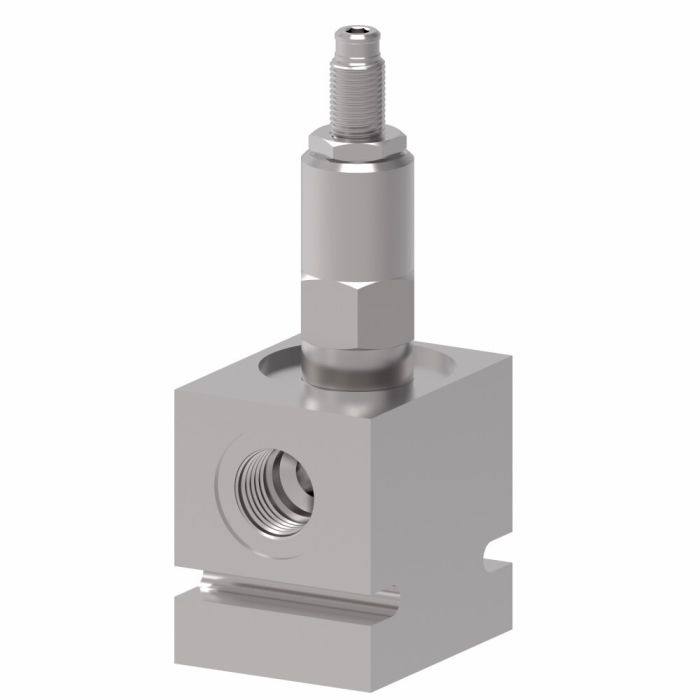

VICKERS PSV2 10 S 6T 12/

Ask A Question

Description & Features

The Vickers PSV2 10 S 6T 12/ is a pressure control valve designed for mobile and industrial applications, including use in harvesters and refuse haulers. This reliable and economical spool valve offers maximum flexibility while requiring minimum space.

This Vickers valve features a 3/8" port size, a flow rate of 23 liters per minute, and is rated to 350 bar (5000 psi) & 300 L/min (80 USgpm).

SKU: 02-170948

Supplier Part Number (MPN): 02-170948

Specifications

Brand
Vickers by Danfoss
Actuator Type
Direct Acting
Adjustment Type
Screw
Body Material
Steel
Cavity
C-10-3
Configuration
Normally Closed
Dimensions
3.01 in L x 1.97 in W x 6.27 in H
Domestic/Import
Import
Housing
With Housing
Installation Type
Screw-In Cartridge
Language
English
Number of Ports/Ways
3-Port
Port Type
SAE
Seal Material
Buna-N
Series
PSV2-10 Series
Style
Spool

Similar Products

Model Number Pressure Rating Price Action
VICKERS PSV2 10 S 8T 24/

02-170364

Product Questions & Answers (2)

Question by: Terry H on Apr 9, 2025, 12:00 PM
Got a harvester that keeps blowing relief valves and I'm trying to figure out if this PSV2 10 would hold up to that kind of pressure. What's it rated for?
Answer by: Customer Support on Apr 11, 2025, 9:03 AM
Rated to 350 bar, which works out to 5000 psi, so it's built for heavy-duty pressure demands. Flow capacity tops out at 300 liters per minute, or 80 US gallons per minute. For harvester applications specifically, this valve was designed with that kind of mobile equipment use in mind, so it's a reasonable fit for high-pressure hydraulic systems in that environment.
Question by: Glen C on May 7, 2025, 9:05 AM
Reckon this'll fit on my old harvester okay? It's a tight space.
Answer by: Customer Support on May 9, 2025, 6:24 AM
This Vickers valve keeps things compact, measuring just under 2 inches wide, so it should fit where space is limited.
