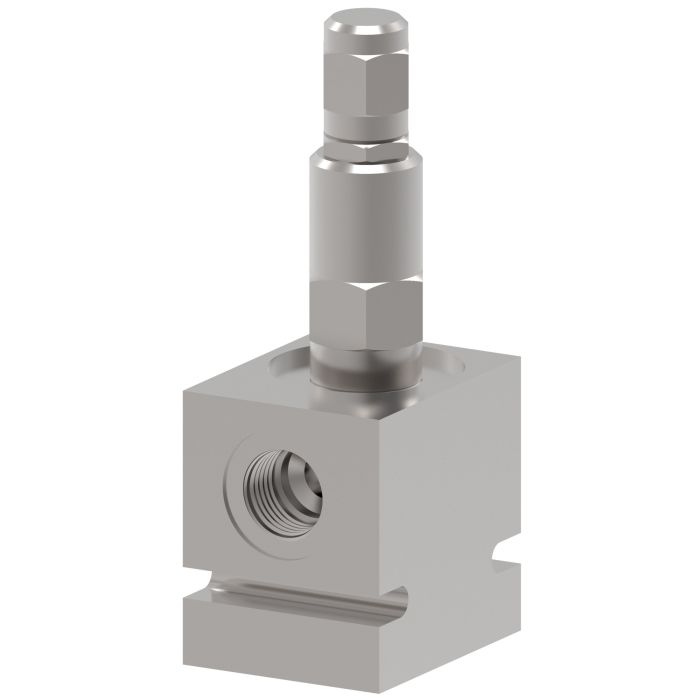

VICKERS RV3-10-C-8T-36/

Ask A Question

Description & Features

Designed for demanding mobile and industrial hydraulic circuits, the Vickers RV3-10-C-8T-36/ is a poppet-style pressure control valve built to handle up to 350 bar (5,000 psi) and flows up to 300 L/min (80 USgpm). Its compact form factor makes it well-suited for installations where space is limited, including harvesters, refuse haulers, and a broad range of mobile equipment.

The RV3-10 series is known for its flexibility in circuit design, offering reliable pressure regulation in a package that balances performance with a minimal footprint. The 1/2" port size and poppet construction contribute to consistent, leak-resistant seating under varied load conditions. With a rated flow of 76 litres per minute, this valve is a practical choice for mid-range hydraulic circuits requiring dependable pressure control.

SKU: 02-171220

Supplier Part Number (MPN): 02-171220

Specifications

Brand
Vickers by Danfoss
Actuator Type
Direct Acting
Body Material
Aluminum
Connection Type
SAE
Dimensions
2.5 in L x 1.14 in W x 5.8 in H
Domestic/Import
Import
End Type
SAE
Nominal Size
10
Number of Ports/Ways
2-Port
Seal Material
Buna-N
Segment Code
B
Series
RV3-10 Series
Style
Poppet

Product Questions & Answers (2)

Question by: Tommy W on Oct 13, 2025, 11:17 AM
What's the deal with the port size on this thing?
Answer by: Customer Support on Oct 14, 2025, 8:12 PM
It comes with a 1/2" port size, which helps provide consistent, leak-resistant seating even when the load conditions change.
Question by: Jimmy M on Jul 21, 2025, 8:16 AM
Got a refuse hauler that keeps blowing off pressure at the wrong point, would the RV3-10-C-8T-36 hold up to that kind of work and handle it right?
Answer by: Customer Support on Jul 22, 2025, 12:49 PM
Pressure control on refuse equipment gets ugly fast, and this valve is rated for exactly that environment. It runs up to 350 bar (5,000 psi) and handles flows up to 300 litres per minute, so the demands of a refuse hauler circuit are well within its range. The poppet-style construction gives you consistent, leak-resistant seating even when load conditions are jumping around, which is where a lot of valves start to drift or weep. The 1/2" port size fits mid-range circuits well, and the rated flow sits at 76 litres per minute for typical operating conditions. It's a compact unit, so fitment in tight chassis areas shouldn't be a problem either.
