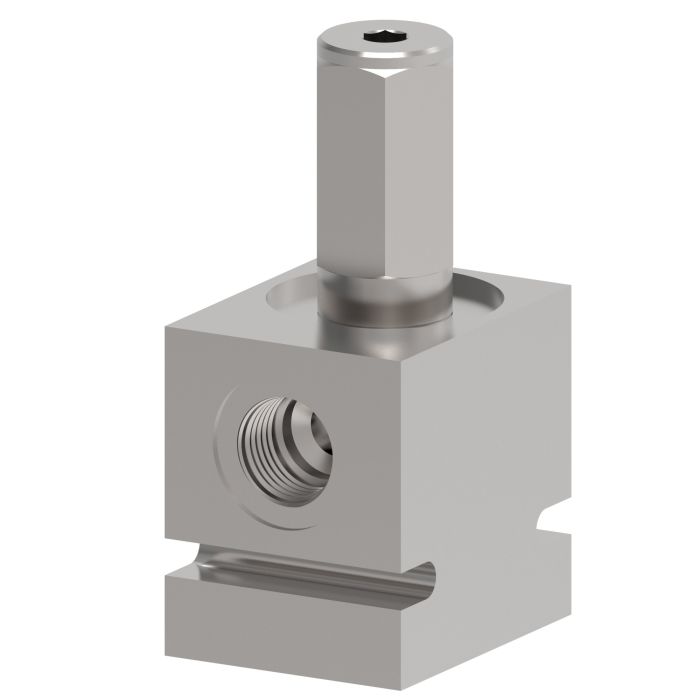

main product photo

VICKERS RV3-10-I-8T-36/

Ask A Question

Description & Features

Designed for mobile and industrial hydraulic circuits, the Vickers RV3-10-I-8T-36/ is a poppet-style pressure control valve built to handle demanding conditions across applications including harvesters and refuse haulers. The poppet construction provides reliable sealing and consistent pressure regulation in environments where durability and compact installation are priorities.

Rated to 350 bar (5,000 psi) with a system flow capacity up to 300 L/min (80 USgpm), this valve is well-suited to high-pressure mobile and industrial circuits. The 1/2" port size and a flow rate of 76 litres per minute support efficient integration into space-constrained installations. Part of the Vickers RV3-10 series by Danfoss/Eaton, it balances functional flexibility with a minimal footprint.

SKU: 02-171332

Supplier Part Number (MPN): 02-171332

Specifications

Brand
Vickers by Danfoss
Actuator Type
Direct Acting
Body Material
Aluminum
Connection Type
SAE
Dimensions
2.5 in L x 1.14 in W x 5.8 in H
End Type
SAE
Nominal Size
10
Number of Ports/Ways
2-Port
Seal Material
Buna-N
Series
RV3-10 Series
Style
Poppet

Product Questions & Answers (1)

Question by: Melvin H on Jul 10, 2025, 7:34 AM
Running this on a refuse hauler setup, does the port size and flow rate hold up for that kind of work?
Answer by: Customer Support on Jul 11, 2025, 3:49 PM
Refuse hauler circuits are one of the applications this valve was built around, so it fits that use case well. The 1/2" port size and a flow rate of 76 litres per minute keep things moving efficiently, and the poppet-style construction gives you reliable sealing under the kind of repeated cycling those machines put valves through. Rated to 350 bar (5,000 psi) with system capacity up to 300 L/min, it has enough headroom for demanding mobile hydraulic circuits without being oversized for the job.
