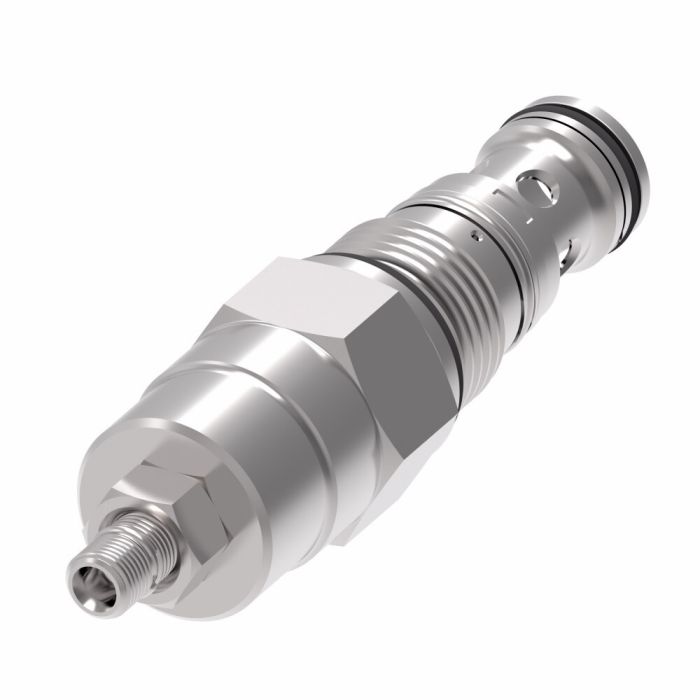

Designed for demanding mobile and industrial environments, the Vickers CBV1 12 S 0 A-30/ is a 3-ported, externally piloted motion control valve rated for up to 350 bar (5,000 psi) and capable of handling flows up to 550 L/min (143 USgpm). It delivers a rated flow of 114 litres per minute under standard conditions.
Compliant with ISO 8643, this valve provides reliable load-holding and excellent stability when managing moving loads, making it well suited for harvesters, refuse haulers, and a range of mobile and industrial applications. The external pilot configuration supports precise control in circuits where independent pilot pressure is required.
Manufactured under the Eaton Vickers brand, this valve is part of the CBV1 Series of Sicv motion control valves. Alternate part numbers include C1FQ52 and CBV112S0A30/.
SKU: 02-172086
Supplier Part Number (MPN): 02-172086
Alternate Part Numbers: C1FQ52, CBV112S0A30/
Loading related products…
Specifications
Alternate Part Numbers
Alternate Part NumberC1FQ52, Alternate Part Number CBV112S0A30/, Alternate Part Number MINO-00569X90020
Application
Harvesters, refuse haulers, mobile and industrial applications
Brand
Danfoss – Hydraulics
Brand
Vickers
Pack Size
1.00
UOM
EA
Features
350 bar (5000 psi) & 550 L/min (143 USgpm)|Excellent stability for moving loads|ISO8643 Compliant
Flow Rate1
114 litre per minute
ICC
SICV Motion Control Valves
Language
English
Net Pack Quantity Units
EA
Port Size
None
Product Width
1.25
Special Features
None
Style
3-Ported, Externally Piloted
Sub Brand
Vickers
Supplier Part Number
02-172086
Product Weight
0.50 lbs
Product Questions & Answers (2)
Question by: Melvin W on Sep 29, 2025, 12:11 PM
got a moving load that likes to creep on me. is this CBV1-12 valve meant to keep things steady?
Answer by: Customer Support on Sep 30, 2025, 1:55 PM
For moving loads, the CBV1-12 series is built around stability, so it is a good fit when you are trying to keep a load from getting “squirrely” during motion.
Question by: Wayne W on Oct 13, 2025, 6:49 AM
does this valve meet the requirements for mobile equipment like harvesters or refuse trucks, or is it more of an industrial shop kind of part?
Answer by: Customer Support on Oct 14, 2025, 8:24 AM
Both, actually. The CBV1-12 is rated for harvesters, refuse haulers, and general mobile equipment alongside industrial applications, so it covers a pretty wide range of use cases. Rated at 350 bar (5000 psi) with a flow capacity up to 550 L/min (143 USgpm), it handles the kind of demanding duty cycles those environments throw at it. The ISO8643 compliance also means it meets the motion control standards expected in mobile hydraulic work.
