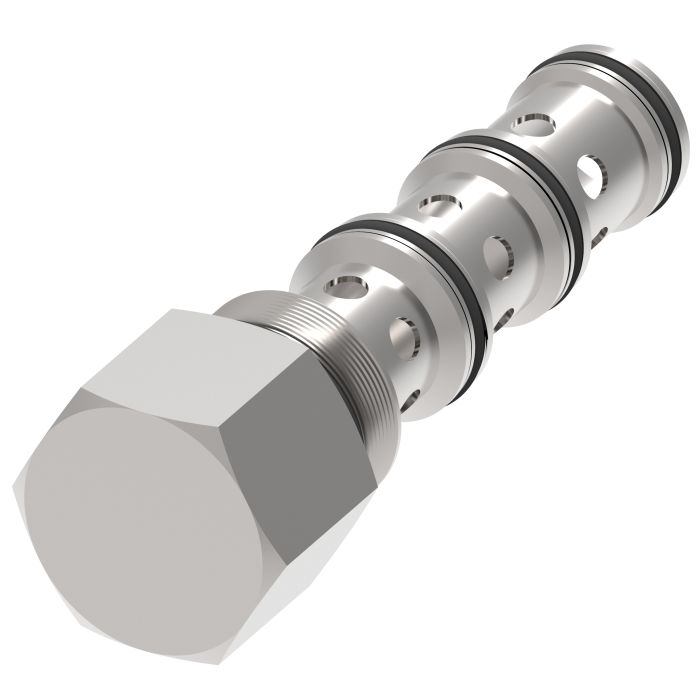

VICKERS PTS3 20V 0 80

Description & Features

Designed for demanding mobile and industrial environments, the Vickers PTS3 20V 0 80 is a spool-style directional control valve rated to 350 bar (5,000 psi) with a maximum flow capacity of 265 litres per minute (70 US gpm). Its compact form factor makes it well suited for applications where space is limited without compromising flow or pressure performance.

This PTS3-20 Series valve is commonly deployed in harvesters, refuse haulers, and a range of mobile and industrial equipment. The spool configuration provides reliable directional control, and the series is recognised for balancing consistent performance with an economical design. Manufactured under the Vickers brand by Danfoss/Eaton, it fits within a well-established valve platform with broad application compatibility.

SKU: 02-172598

Supplier Part Number (MPN): 02-172598

Specifications

Actuator Type Hydraulic, Pilot Operated	Cavity C-20-4	Detent Option Without Detent	Dimensions 7.12 in L x 1.25 in W x 1.25 in H	Domestic/Import Import	Function Pilot to Shift Valve	Housing Without Housing	Installation Type Screw-In Cartridge	Language English	Number of Ports/Ways 4-Port, 4-Way	Number of Positions 2	Port Type Cartridge	Seal Material FKM	Series PTS3-20 Series	Style Spool

Product Questions & Answers (2)

Question by: Marvin H on Feb 27, 2026, 7:24 AM

If I’m running a harvester, is this the right valve for the job?

Answer by: Customer Support on Mar 1, 2026, 6:56 AM

this Vickers PTS3 valve is commonly used in harvesters, along with refuse haulers and other mobile and industrial equipment.

Question by: Freddie C on Nov 20, 2025, 6:14 AM

Got a harvester that's been giving us fits with the old directional valve, flow drops off and pressure ain't holding right. Would the PTS3 20V handle that kind of workload, rated for what it is?

Answer by: Customer Support on Nov 21, 2025, 8:03 PM

At 350 bar and 265 litres per minute, this valve is built for exactly that kind of application. Harvesters are one of the listed use cases for the PTS3-20 Series, so it's not a stretch to say it's well matched to that environment. The spool-style design gives you reliable directional control, and the pressure rating should hold up to what a harvester system typically demands. If your current valve is dropping pressure and flow, swapping in a unit rated to 5,000 psi with 70 gpm capacity ought to give you back what you're losing.
