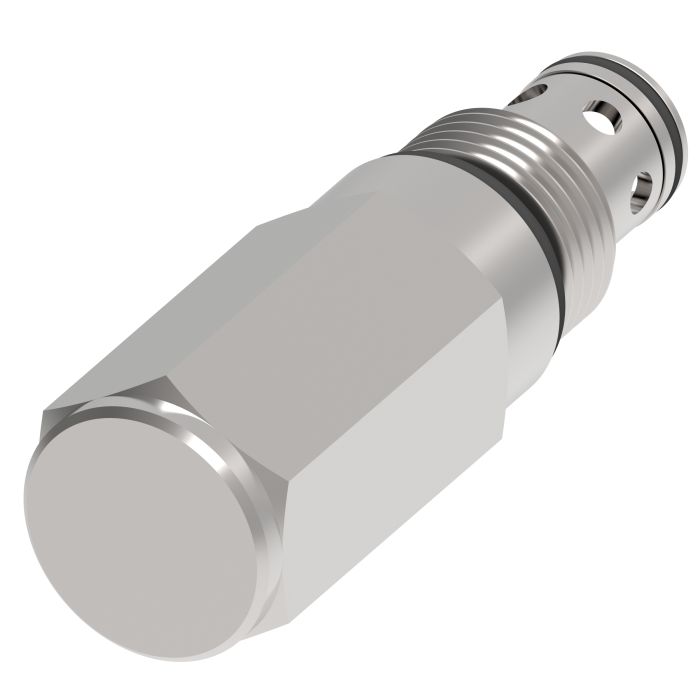

VICKERS RV5-10-F-0-20/5

Ask A Question

Description & Features

Designed for mobile and industrial hydraulic circuits, the Vickers RV5-10-F-0-20/5 is a spool-style pressure control valve rated for demanding environments including harvesters and refuse haulers. The RV5-10 series supports pressures up to 350 bar (5,000 psi) and flow rates up to 300 L/min (80 USgpm), with this configuration rated at 114 litres per minute.

Compact construction and a flexible mounting envelope make the RV5-10 well suited to space-constrained installations where reliable pressure regulation is required. Manufactured under the Vickers brand by Eaton/Danfoss, the valve balances economical design with consistent performance across both mobile and stationary hydraulic systems.

SKU: 02-172854

Supplier Part Number (MPN): 02-172854

Specifications

Brand
Vickers by Danfoss
Actuator Type
Pilot Operated
Dimensions
3.33 in L x 1 in W x 1 in H
Domestic/Import
Import
Installation Type
Screw-In Cartridge
Nominal Size
10
Number of Ports/Ways
2-Port
Seal Material
Buna-N
Segment Code
B
Series
RV5-10 Series
Style
Spool

Product Questions & Answers (2)

Question by: Ross A on Dec 25, 2025, 7:13 AM
got a harvester that keeps blowing relief valves under load, would the RV5-10-F-0-20/5 hold up to that kind of continuous pressure demand?
Answer by: Customer Support on Dec 26, 2025, 1:38 PM
For harvester applications, this valve is actually a named fit. The RV5-10 series is rated up to 350 bar (5,000 psi) and the specific configuration you're looking at flows at 114 litres per minute, which keeps it well within the series ceiling of 300 L/min. Vickers built the RV5-10 line with mobile equipment like harvesters in mind, so pressure regulation under sustained working loads is exactly what it's meant to handle.
Question by: Merle P on Feb 26, 2026, 2:16 PM
Can this handle the kinda pressures you get on a big ol' harvester, out in the field all day?
Answer by: Customer Support on Feb 28, 2026, 6:30 AM
Absolutely. This Vickers RV5-10 valve is rated up to 350 bar (5,000 psi), making it suitable for demanding applications like harvesters and other heavy mobile equipment.
