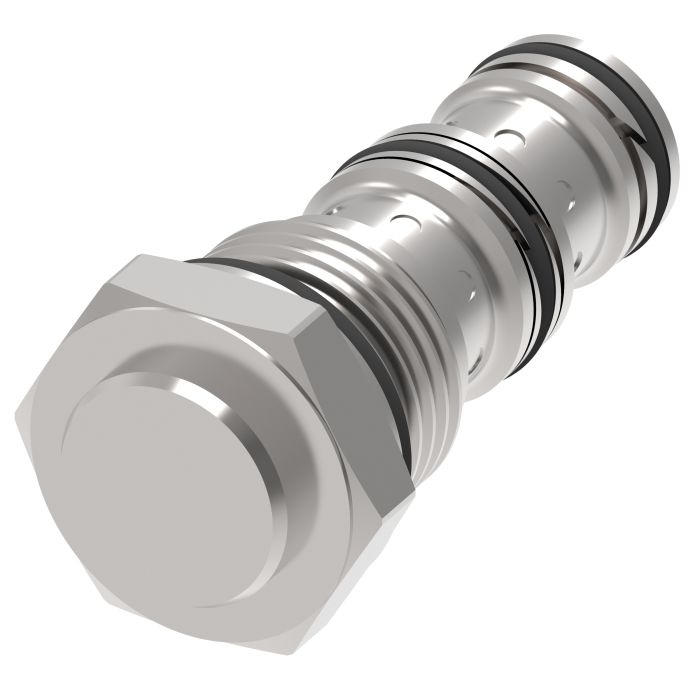

VICKERS PFR5-8-F-0-0.25

Ask A Question

Description & Features

Designed for efficiency and reliability, the Vickers PFR5-8-F-0-0.25 is a fixed pressure compensated flow regulator that excels in demanding environments such as harvesters, refuse haulers, and various mobile and industrial applications. This flow control valve ensures an optimal balance of 350 bar (5000 psi) pressure and 350 L/min (92 USgpm) flow rate, making it a versatile choice for hydraulic systems requiring precise control and consistent performance.

With a compact design and a flow rate of 10 litres per minute, the Vickers PFR5-8 series is both economical and dependable. Its robust construction supports durability and longevity, providing a reliable solution for controlling hydraulic flow in diverse settings. The product’s narrow width of 0.87 inches further facilitates easy integration into existing machinery without imposing significant spatial demands.

SKU: 02-172972

Supplier Part Number (MPN): 02-172972

Specifications

Brand
Vickers by Danfoss
Actuator Type
Pressure Compensated
Adjustment Type
Fixed Orifice
Cavity
C-8-3
Dimensions
1.93 in L x 0.87 in W x 0.87 in H
Domestic/Import
Import
Housing
Without Housing
Mounting Type
Screw-In
Nominal Size
#08
Number of Ports/Ways
3-Port
Port Type
Cartridge
Seal Material
Buna-N
Series
PFR5-8 Series
Spool Seal
Without Spool Seal
Style
Fixed Pressure Compensated, Flow Regulator

Product Questions & Answers (2)

Question by: Roy M on Aug 21, 2025, 8:39 AM
Reckon this would work okay on a refuse hauler?
Answer by: Customer Support on Aug 22, 2025, 5:40 PM
Application-wise, yes, this Vickers PFR5-8 series flow control valve is indeed suitable for refuse haulers, along with harvesters and other mobile and industrial applications.
Question by: Vince H on Sep 20, 2025, 6:43 PM
flow rate on this one is listed at 10 litres per minute -- that right for a unit rated up to 92 gpm? trying to make sure i got the right part before i order
Answer by: Customer Support on Sep 22, 2025, 8:58 AM
The 10 litre per minute figure is the regulated output flow rate for this specific valve. The 350 L/min (92 USgpm) and 5000 psi ratings describe the system capacity the valve is built to handle, not what it passes through. So yes, 10 L/min is what you're getting out of this one, and that's by design for the PFR5-8-F-0-0.25 configuration.
