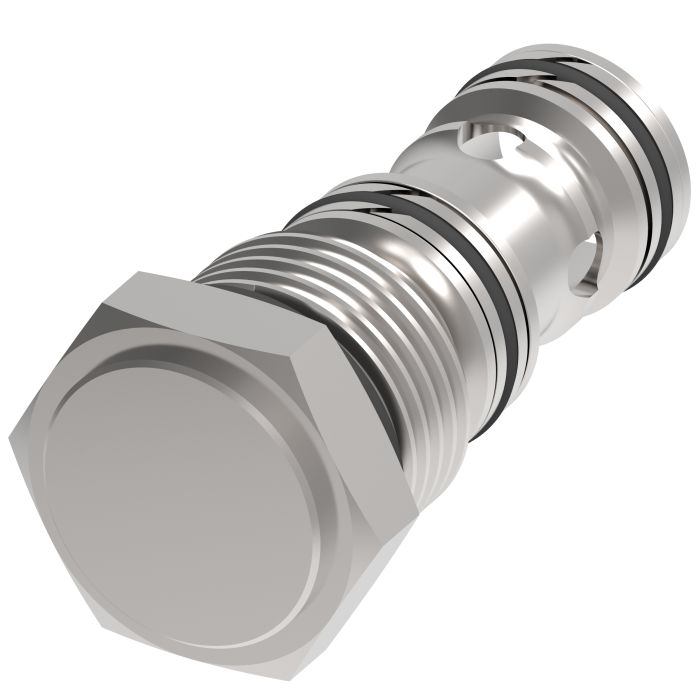

VICKERS POC1 10 F 0 100

Description & Features

This Vickers POC1 10 F 0 100 check valve is part of the Vickers by Danfoss / Eaton POC1-10 series, designed for harvesters, refuse haulers, and other mobile and industrial applications.

This poppet style check valve offers high operational efficiency and low spring settings. It handles a maximum pressure of 350 bar (5000 psi) and a flow rate of 57 liters per minute (approximately 15 US gallons per minute), up to a maximum of 227 L/min (60 USgpm).

SKU: 02-173181

Supplier Part Number (MPN): 02-173181

Specifications

Actuator Type Pilot Operated	Dimensions 2.17 in L x 1 in W x 1 in H	Domestic/Import Import	Language English	Mounting Type Screw-In Cartridge	Nominal Size 10	Number of Ports/Ways 3-Port	Seal Material Buna-N	Series POC1-10 Series	Style Poppet

Product Questions & Answers (2)

Question by: Dustin C on Mar 3, 2026, 8:57 PM

Running a refuse hauler and need a check valve that won't give out under pressure. This one rated for 5000 psi?

Answer by: Customer Support on Mar 5, 2026, 7:54 AM

Yeah, 350 bar is exactly 5000 psi, so it holds up to that full pressure rating. The POC1-10 series was built with mobile equipment like refuse haulers in mind, so the pressure handling lines up well for that kind of work.

Question by: Rod C on May 1, 2025, 3:53 PM

Reckon this check valve will work okay in a hydraulic system on a cotton picker?

Answer by: Customer Support on May 3, 2025, 6:56 AM

Designed for mobile and industrial applications like harvesters, this Vickers check valve should be suitable for your cotton picker's hydraulic system.
