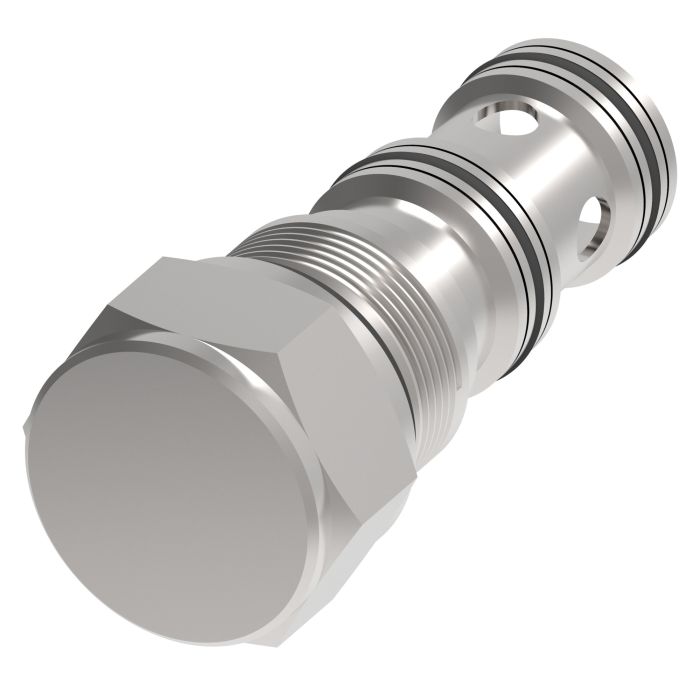

VICKERS POC1-12-F-0-005

Ask A Question

Description & Features

Designed for demanding mobile and industrial hydraulic circuits, this poppet-style check valve handles flow rates up to 114 litres per minute and is rated to 350 bar (5,000 psi). The VICKERS POC1-12-F-0-005 features low spring settings that support high operational efficiency across a range of system pressures, making it well suited for harvesters, refuse haulers, and general industrial equipment.

Part of the Vickers by Eaton POC1-12 series, this valve delivers reliable non-return flow control in both mobile and stationary hydraulic applications where consistent performance under high pressure is a priority.

SKU: 02-173263

Supplier Part Number (MPN): 02-173263

Alternate Part Numbers: POC112F0005

Specifications

Actuator Type
Pilot Operated
Dimensions
1.25 in L x 3.03 in W x 1.25 in H
Domestic/Import
Import
Language
English
Mounting Type
Screw-In
Nominal Size
#12
Number of Ports/Ways
3-Port
Seal Material
Buna-N
Series
POC1-12 Series
Style
Poppet

Product Questions & Answers (1)

Sign In Hover me Please sign in to submit a question
Question by: Kurt J on Aug 23, 2025, 8:12 AM
flow rate on this thing is listed at 114 litres per minute but the series max shows 227, which one actually applies to this part?
Answer by: Customer Support on Aug 24, 2025, 8:04 PM
The 114 litre per minute figure is the rated flow for this specific valve, the POC1-12-F-0-005. The 227 L/min and 60 USgpm rating reflects the broader POC1-12 series ceiling, not this individual part. For sizing purposes, plan around the 114 L/min number.
