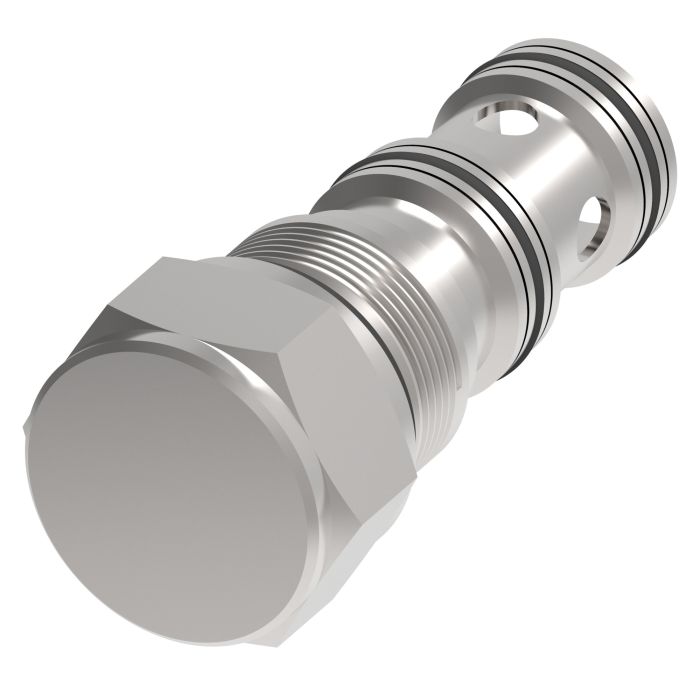

VICKERS POC1-12-F-0-100

Description & Features

Designed for demanding mobile and industrial environments, the Vickers POC1-12-F-0-100 is a poppet-style check valve rated to 350 bar (5,000 psi) with a flow capacity of up to 227 L/min (60 USgpm). Its low spring settings support high operational efficiency across a broad range of working conditions.

Part of the Vickers by Danfoss/Eaton POC1-12 series, this valve is well-suited for use in harvesters, refuse haulers, and a variety of mobile and industrial hydraulic circuits. The poppet construction provides reliable, low-leakage shut-off performance in applications where consistent flow control is critical.

SKU: 02-173266

Supplier Part Number (MPN): 02-173266

Specifications

Actuator Type Pilot Operated	Dimensions 1.25 in L x 3.03 in W x 1.25 in H	Language English	Mounting Type Screw-In	Nominal Size #12	Number of Ports/Ways 3-Port	Seal Material Buna-N	Series POC1-12 Series	Style Poppet

Product Questions & Answers (2)

Question by: Cheryl W on Mar 21, 2026, 9:26 AM

I'm lookin' to replace a check valve on an old harvester. This Vickers POC1-12-F-0-100, will it do the trick?

Answer by: Customer Support on Mar 22, 2026, 11:24 AM

This Vickers check valve is often used in harvesters, so it's likely a good fit. Just double-check your flow rate and pressure requirements to make sure it matches your current setup. It's rated for up to 227 L/min and 350 bar.

Question by: Dwayne B on Jul 8, 2025, 10:07 AM

got a harvester that keeps blowing check valves, wondering if this POC1-12-F-0-100 would hold up better than what I'm running now

Answer by: Customer Support on Jul 9, 2025, 9:05 PM

Poppet-style valves like this one tend to outlast ball-style checks in high-cycle harvester circuits because the seating geometry gives you a more consistent shutoff. Rated to 5,000 psi and capable of handling 60 USgpm, it's built for exactly the kind of mobile ag equipment you're describing. The low-leakage shutoff is one of the stronger selling points here, so if your current valve is letting flow bleed past when it shouldn't, this design addresses that directly.
