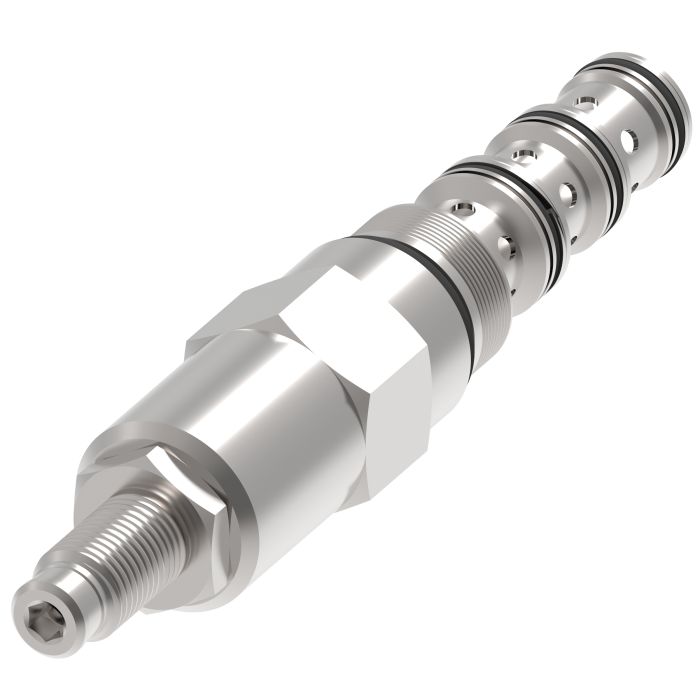

VICKERS PSV10-10-S-0-2/0.5

Description & Features

This Vickers PSV10-10-S-0-2/0.5 pressure control valve is designed for mobile and industrial applications, including use on harvesters and refuse haulers. This spool style valve offers maximum flexibility while requiring minimum space.

The Vickers valve provides reliable and economical performance. It features a maximum pressure of 350 bar (5000 psi) and a maximum flow rate of 300 L/min (80 USgpm). The flow rate is 23 liters per minute.

SKU: 02-175924

Supplier Part Number (MPN): 02-175924

Specifications

Actuator Type
Direct Acting
Adjustment Type
Screw
Cavity
C-10-4
Configuration
Normally Closed
Dimensions
5.78 in L x 1 in W x 1 in H
Domestic/Import
Import
Housing
Without Housing
Installation Type
Screw-In Cartridge
Language
English
Number of Ports/Ways
4-Port
Port Type
Cartridge
Seal Material
Buna-N
Series
PSV10-10 Series
Style
Spool

Product Questions & Answers (2)

Sign In Hover me Please sign in to submit a question
Question by: Ricky R on Sep 17, 2025, 8:35 PM
Got a harvester sitting idle cause the pressure control valve went out, would this PSV10-10-S-0-2/0.5 be a direct drop-in for that kind of equipment?
Answer by: Customer Support on Sep 19, 2025, 7:57 AM
Harvesters are one of the listed applications for this valve, so you're in the right ballpark. It's a spool-style design built to handle up to 350 bar (5000 psi) and flows up to 300 L/min (80 USgpm), so it's got the muscle for demanding mobile equipment. The valve is also built with compactness in mind, which tends to matter when you're working inside tight machine compartments. That said, confirming the fit comes down to matching the port configuration and mounting pattern on your specific harvester model against the PSV10-10 series specs.
Question by: Gene H on Oct 5, 2025, 9:11 PM
What’s the max pressure this thing can handle?
Answer by: Customer Support on Oct 7, 2025, 10:04 AM
This Vickers valve is rated for a maximum pressure of 350 bar, which works out to about 5000 psi.
