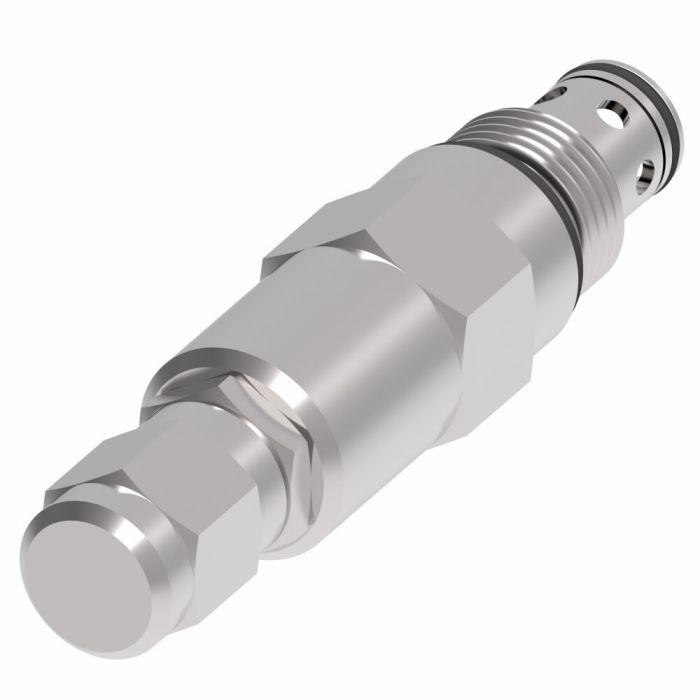

main product photo

VICKERS FR2-10-C-0-/3.00

Ask A Question

Description & Features

Designed for demanding mobile and industrial environments, the Vickers FR2-10-C-0-/3.00 is an adjustable, pressure-compensated flow regulator engineered to maintain consistent flow output regardless of load-induced pressure variations. Rated to 350 bar (5,000 psi) with a maximum flow capacity of 350 L/min (92 USgpm), it delivers a reliable balance of pressure and flow performance in a compact, economical package.

With a nominal flow rate of 38 litres per minute, this valve suits a range of applications including harvesters, refuse haulers, and general mobile and industrial hydraulic circuits. The FR2-10 series is part of Vickers by Eaton's SICV flow control valve line, recognized for consistent regulation and straightforward integration into space-constrained systems.

SKU: 02-175968

Supplier Part Number (MPN): 02-175968

Specifications

Brand
Vickers by Danfoss
Actuator Type
Pressure Compensated
Adjustment Type
Cap
Body Material
Aluminum
Cavity
C-10-2
Dimensions
4.4 in L x 1 in W x 1 in H
Domestic/Import
Import
Housing
Without Housing
Mounting Type
Screw-In
Nominal Size
10
Number of Ports/Ways
2-Port
Operation
Differential Pressure
Seal Material
Buna-N
Series
FR2-10 Series
Spool Seal
Without Spool Seal
Style
Adjustable Pressure Compensated, Flow Regulator

Product Questions & Answers (2)

Question by: Todd Y on Oct 12, 2025, 8:27 AM
Flow rate on this one shows 38 litres per minute nominal, but the max capacity listed is way higher at 350 L/min. Which number actually matters for sizing it into my circuit?
Answer by: Customer Support on Oct 13, 2025, 6:40 PM
For most sizing decisions, the 38 litre per minute nominal flow rate is the number you want to work from. That figure represents what the valve is calibrated to regulate under normal operating conditions. The 350 L/min maximum is the upper boundary the valve can physically handle without damage, not a target operating point. If your circuit is running close to that ceiling, you'd be well outside the intended working range for this regulator. Plan around the 38 L/min nominal and make sure your system pressure stays within the 350 bar rating, and you'll be in good shape.
Question by: Diane W on Dec 16, 2025, 9:38 AM
What kinda machines is this flow regulator meant for?
Answer by: Customer Support on Dec 17, 2025, 6:06 PM
Application-wise, it's good for harvesters, refuse haulers, plus general mobile and industrial hydraulic applications.
