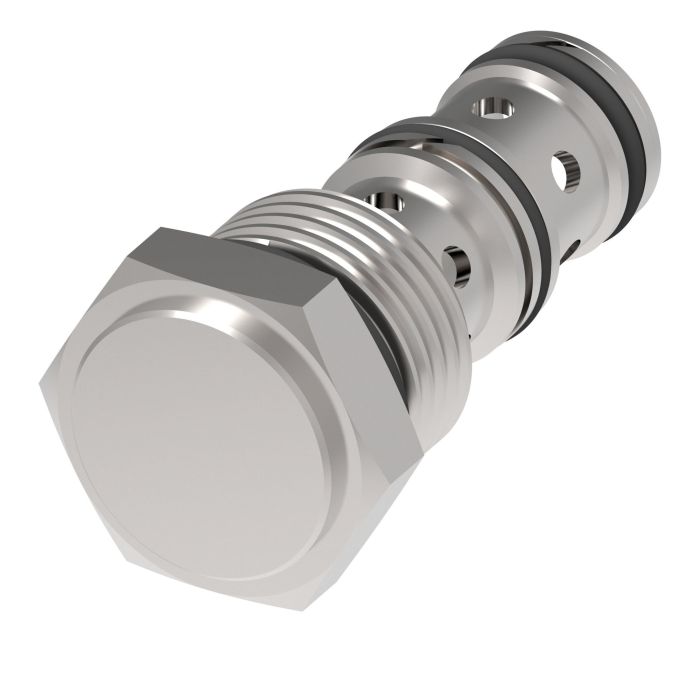

VICKERS SPC2-8-P-A6T-15

Ask A Question

Description & Features

The Vickers SPC2-8-P-A6T-15 is a poppet style check valve designed for mobile and industrial applications, as well as use in refuse haulers and harvesters. These Vickers by Danfoss / Eaton SPC2-8 Series Check Valves feature high operational efficiency and low spring settings.

This valve offers a maximum pressure of 350 bar (5000 psi) and a flow rate of 19 liters per minute (approximately 5 USgpm) with a 3/8" port size. It can handle a maximum flow of 227 L/min (60 USgpm).

SKU: 02-176278

Supplier Part Number (MPN): 02-176278

Specifications

Actuator Type
Pilot Operated
Body Material
Aluminum
Cavity
C-8-3
Connection Type
SAE
Dimensions
2.5 in L x 1.5 in W x 2.985 in H
Domestic/Import
Import
End Type
SAE
Housing
With Housing
Language
English
Mounting Type
Screw-In Cartridge
Nominal Size
#08
Number of Ports/Ways
3-Port
Pilot Piston Seal
Without Pilot Piston Seal
Pilot Ratio
3:1
Port Type
SAE
Seal Material
Buna-N
Series
SPC2-8 Series
Style
Poppet

Product Questions & Answers (2)

Sign In Hover me Please sign in to submit a question
Question by: Ricky T on Mar 12, 2026, 7:06 AM
what's the max pressure this valve can handle, and is it gonna hold up in a refuse hauler setup?
Answer by: Customer Support on Mar 13, 2026, 9:43 PM
Rated to 350 bar, which works out to 5000 psi, so it's got plenty of headroom for the kind of pressure swings you'd see in a refuse hauler. The SPC2-8 series was built with exactly those applications in mind, along with harvesters and general mobile hydraulic work. The poppet style design and low spring settings help keep things running efficiently even in demanding duty.
Question by: Shawn R on Mar 3, 2026, 7:23 AM
If I'm usin' this in a mobile hydraulic setup, can it handle the vibrations and bumps without failin'?
Answer by: Customer Support on Mar 5, 2026, 6:24 AM
Designed for both mobile and industrial uses, the SPC2-8-P-A6T-15 is built to withstand typical operational conditions in those environments, including the kind of vibrations you'd find in mobile applications.
