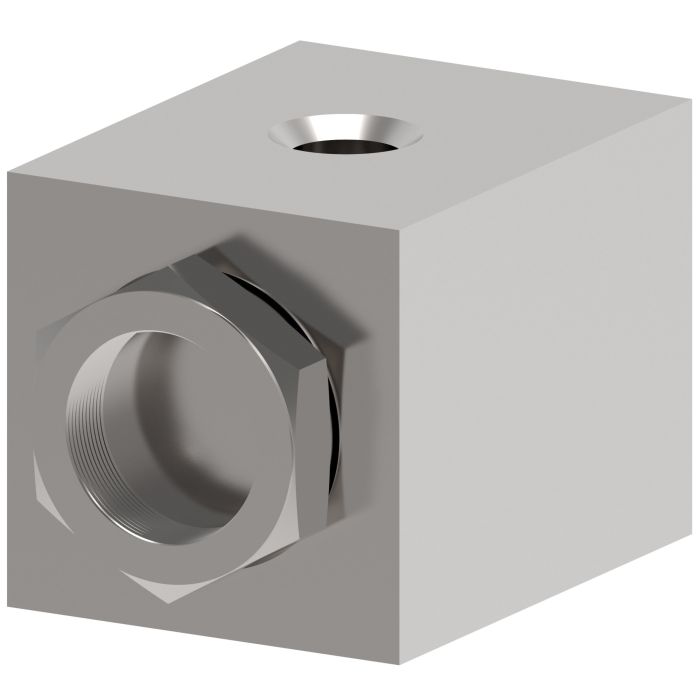

main product photo

VICKERS DSV3-12V-B-A8T

Ask A Question

Description & Features

Designed for demanding mobile and industrial hydraulic circuits, the Vickers DSV3-12V-B-A8T is a ball-style check valve engineered to handle pressures up to 350 bar (5,000 psi) with flow rates up to 227 L/min (60 USgpm). The 1/2" port size suits a broad range of circuit configurations, and low spring settings contribute to high operational efficiency across varying load conditions.

Part of the Vickers by Danfoss/Eaton DSV3-B series, this valve is well suited for use in harvesters, refuse haulers, and a wide range of mobile and industrial hydraulic systems. A rated flow of 170 litres per minute supports reliable performance in high-demand applications where consistent pressure control and minimal pressure drop are priorities.

SKU: 02-176335

Supplier Part Number (MPN): 02-176335

Specifications

Brand
Vickers by Danfoss
Actuator Type
Direct Acting
Body Material
Aluminum
Connection Type
SAE
Dimensions
2-1/2 in L x 1-1/2 in W x 2 in H
Domestic/Import
Import
End Type
SAE
Language
English
Mounting Type
Screw-In
Nominal Size
#12
Number of Ports/Ways
3-Port
Seal Material
FKM
Segment Code
B
Series
DSV3-12 Series
Style
Ball

Product Questions & Answers (2)

Question by: Hugh W on Jan 23, 2026, 11:22 AM
Reckon this check valve would hold up on a refuse hauler? Those hydraulic systems take a beating.
Answer by: Customer Support on Jan 24, 2026, 7:56 PM
It’s definitely suitable for refuse haulers. With a pressure rating of 350 bar (5,000 psi) and a flow rate of 227 L/min (60 USgpm), it's built to handle the demanding conditions you find in those applications.
Question by: Harold F on Apr 22, 2025, 3:48 PM
Got a harvester that keeps giving me grief with pressure spikes. Would a ball-style check valve rated to 5,000 psi hold up in that kind of circuit, or is that pushing it?
Answer by: Customer Support on Apr 23, 2025, 6:15 PM
At 350 bar (5,000 psi) max pressure, this valve is built for exactly that kind of environment. Harvesters are actually a listed application for the DSV3-12V-B-A8T, so high-demand mobile circuits like yours are well within its design range. The ball-style construction and low spring settings help keep pressure drop minimal, which matters a lot when you're trying to smooth out erratic load conditions rather than add more restriction to an already stressed circuit.
