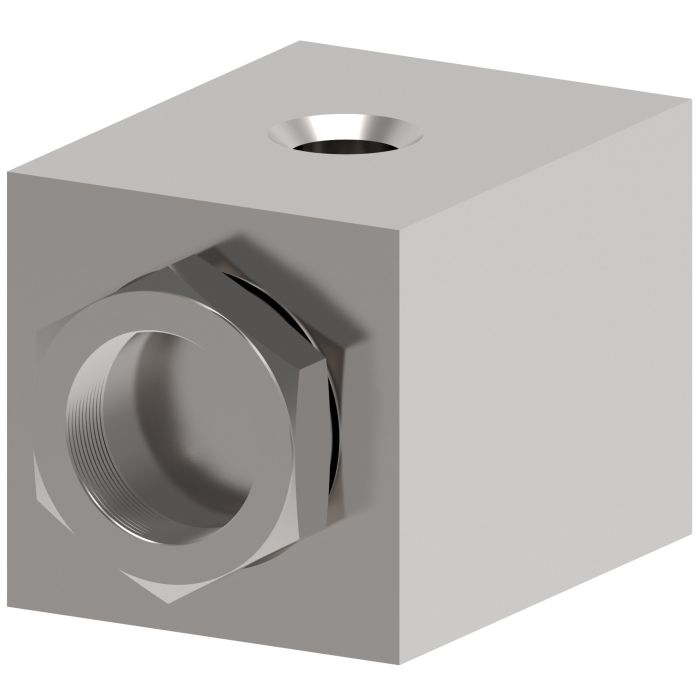

main product photo

Vickers DSV3 8 B S6T

Ask A Question

Description & Features

Rated to 350 bar (5000 psi) with a flow capacity of up to 227 L/min (60 USgpm), this ball-style check valve is built for demanding mobile and industrial hydraulic circuits. The Vickers DSV3 8 B S6T features a 3/8" port size and low spring settings that contribute to high operational efficiency across a range of duty cycles.

Suited for use in harvesters, refuse haulers, and general industrial equipment, this valve is part of the DSV3-B Series from Vickers by Danfoss / Eaton, a line designed to handle both the pressure and flow demands common in mobile machinery hydraulics.

SKU: 02-176345

Supplier Part Number (MPN): 02-176345

Specifications

Brand
Vickers by Danfoss
Actuator Type
Direct Acting
Body Material
Steel
Connection Type
SAE
Dimensions
1.87 in L x 1.25 in W x 1.72 in H
End Type
SAE
Language
English
Mounting Type
Screw-In
Nominal Size
#08
Number of Ports/Ways
3-Port
Seal Material
Buna-N
Series
DSV3-8 Series
Style
Ball

Product Questions & Answers (2)

Question by: Tommy C on Mar 16, 2026, 6:52 PM
reckon this check valve would hold up okay in a garbage truck hydraulic system?
Answer by: Customer Support on Mar 17, 2026, 9:36 PM
Built to handle the demands of mobile machinery, this Vickers check valve can certainly be used in refuse haulers, as well as harvesters and general industrial equipment.
Question by: Wes B on Sep 23, 2025, 10:41 AM
Got a harvester that keeps blowing out check valves under load. This a ball-style unit or one of them poppet types?
Answer by: Customer Support on Sep 25, 2025, 6:54 AM
Ball-style, which holds up well under the kind of cycling pressure you'd see in harvest equipment. It's rated to 350 bar (5000 psi) and handles flow up to 227 L/min (60 USgpm), so it's got the headroom for demanding load conditions. The low spring settings also help keep efficiency up when the system's working hard through a full duty cycle.
