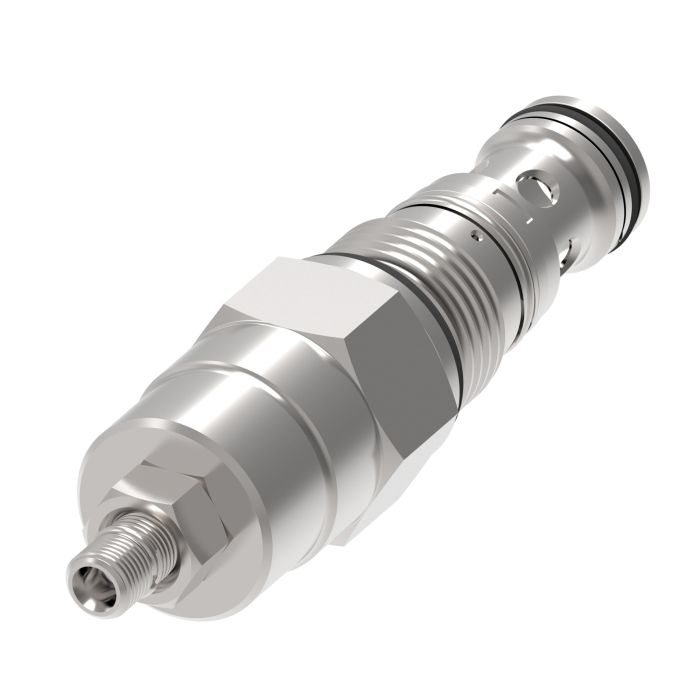

VICKERS CBV1-12-S-0-A-30/30

Description & Features

Designed for demanding mobile and industrial applications, the Vickers CBV1-12-S-0-A-30/30 is a 3-ported, externally piloted motion control valve built to handle a flow rate of 114 litres per minute. Rated to 350 bar (5,000 psi) with a system capacity of up to 550 L/min (143 USgpm), it is well suited to high-load hydraulic circuits where consistent motion control is critical.

Compliant with ISO 8643, this valve delivers stable load-holding and controlled movement across a range of equipment types, including harvesters and refuse haulers. The external pilot configuration supports flexible circuit integration in both mobile and stationary industrial systems.

SKU: 02-176414

Supplier Part Number (MPN): 02-176414

Specifications

Brand Vickers by Danfoss	Dimensions 4.07 in L x 4.07 in W x 1.25 in H	Domestic/Import Import	Language English	Number of Ports/Ways 3-Port	Seal Material Buna-N	Segment Code C	Series CBV1-12 Series	Style Externally Piloted

Product Questions & Answers (2)

Question by: Hugh M on Apr 4, 2026, 1:05 PM

Got a harvester that's been giving us grief with load drift on the boom circuit. Would this Vickers CBV1-12 be the right kind of valve to address that?

Answer by: Customer Support on Apr 5, 2026, 4:53 PM

Load-holding stability is exactly what this valve is built around. It's a motion control valve rated to 350 bar (5,000 psi) with a flow capacity up to 550 L/min, and it meets ISO 8643, which is the standard specifically covering counterbalance and motion control valves for mobile equipment. If your harvester boom is drifting under load, this style of externally piloted valve is the correct category of fix. The 114 L/min rated flow is worth checking against your circuit's actual demand before ordering, just to make sure you're in the right size range.

Question by: Harvey F on Mar 31, 2026, 9:01 PM

So, how much hydraulic fluid can this thing handle?

Answer by: Customer Support on Apr 2, 2026, 6:43 AM

This valve is rated to handle a flow rate of 114 litres per minute, and the system itself can manage up to 550 L/min.
