VICKERS POC1-10-F-IA8H-030

Description & Features

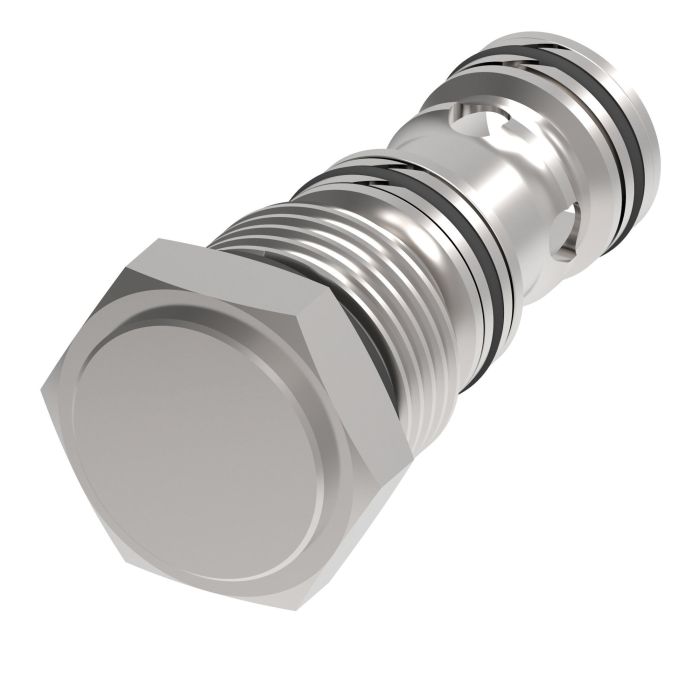

The Vickers POC1-10-F-IA8H-030 is a high-performance check valve designed for demanding applications such as harvesters, refuse haulers, and various mobile and industrial settings. This poppet-style valve offers robust functionality with a pressure rating of 350 bar (5000 psi) and a flow rate of 57 litres per minute. Its 1/2" port size ensures compatibility with a range of hydraulic systems, making it a versatile choice for professionals seeking reliable fluid control.

Engineered for efficiency, the Vickers POC1-10 Series check valves feature low spring settings that enhance operational efficiency. With a maximum flow capacity of 227 litres per minute (60 USgpm), these valves are built to manage substantial hydraulic loads while maintaining precise control. The integration of Vickers' advanced technology ensures long-lasting performance and reliability in harsh environments.

SKU: 02-176817

Supplier Part Number (MPN): 02-176817

Specifications

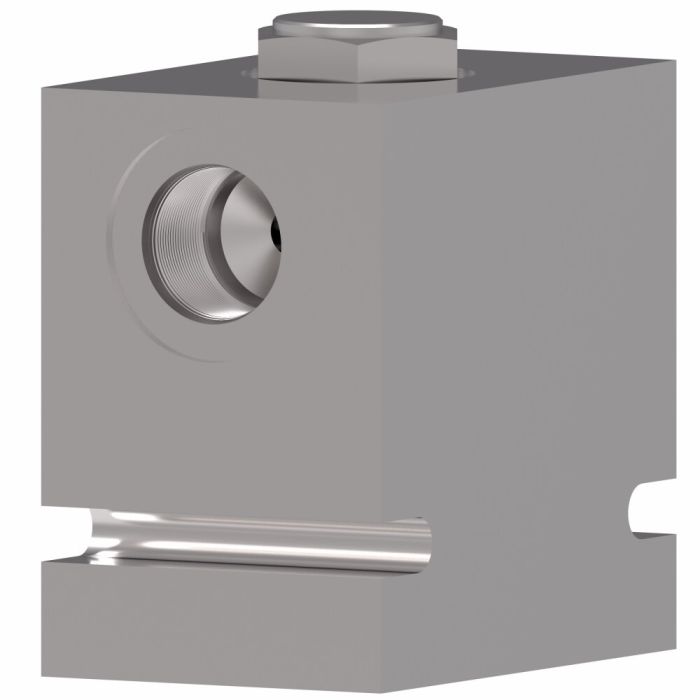

Actuator Type Pilot Operated	Body Material Aluminum	Cavity C-10-3	Connection Type SAE	Dimensions 4.5 in L x 2.47 in W x 3.28 in H	Domestic/Import Import	End Type SAE	Housing With Housing	Language English	Mounting Type Screw-In Cartridge	Nominal Size 10	Number of Ports/Ways 3-Port	Pilot Piston Seal Without Pilot Piston Seal	Pilot Ratio 3:1	Port Type SAE	Seal Material Buna-N	Series POC1-10 Series	Style Poppet

Product Questions & Answers (2)

Question by: Randy C on Aug 27, 2025, 8:45 AM

Got a harvester that's been giving me grief with backflow, and I'm trying to figure out if this POC1-10 would hold up to that kind of work. What's the pressure rating on it?

Answer by: Customer Support on Aug 29, 2025, 6:24 AM

For harvester applications, that rating is solid. This valve handles up to 350 bar, which is 5000 psi, so it's built for exactly the kind of load you'd see in heavy mobile equipment. The poppet-style design keeps things tight under pressure, and the low spring settings help it operate efficiently without fighting the system. Backflow control is what these are made for.

Question by: Lance A on Nov 24, 2025, 9:22 AM

Reckon this'll fit my setup if I'm runnin' half-inch lines?

Answer by: Customer Support on Nov 26, 2025, 6:20 AM

this Vickers check valve comes with 1/2" ports, so it should hook right up to your existing system without needing any adapters.
