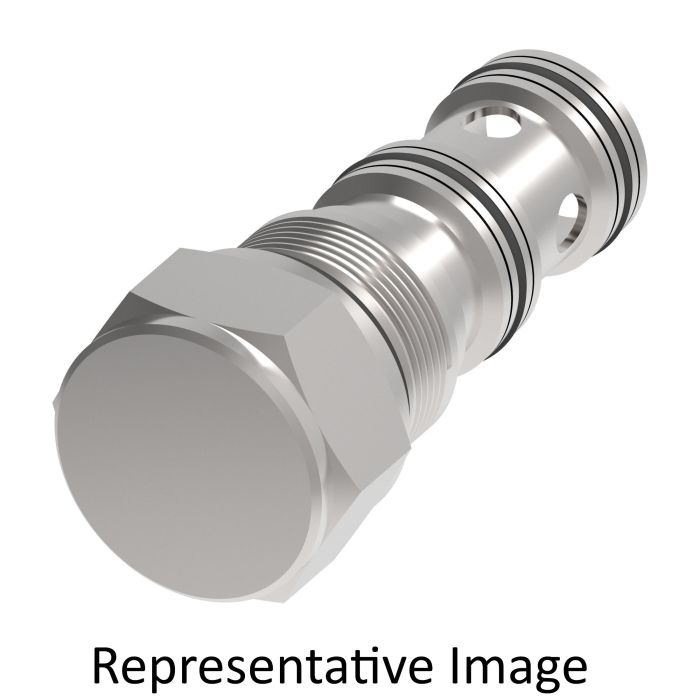

VICKERS POC1-12-F-IA12T-030

Description & Features

Designed for high-performance in demanding environments, the Vickers POC1-12-F-IA12T-030 check valve is an ideal choice for harvesters, refuse haulers, and various mobile and industrial applications. With a robust pressure rating of 350 bar (5000 psi) and a flow rate of 114 liters per minute, this poppet-style check valve ensures efficient fluid control. The valve features a 3/4" port size, facilitating easy integration into existing systems. Known for its high operational efficiency and low spring settings, the Vickers POC1-12-F-IA12T-030 is a reliable component in the Vickers POC1-12 series.

SKU: 02-177025

Supplier Part Number (MPN): 02-177025

Specifications

Actuator Type Pilot Operated	Body Material Aluminum	Connection Type SAE	Dimensions 1.25 in L x 3.03 in W x 1.25 in H	End Type SAE	Language English	Mounting Type Screw-In	Nominal Size #12	Number of Ports/Ways 3-Port	Seal Material Buna-N	Series POC1-12 Series	Style Poppet

Product Questions & Answers (1)

Question by: Lyle B on Jan 22, 2026, 7:37 AM

Flow rate on this thing listed at 114 liters per minute, but I saw somewhere the series goes up to 227 L/min. Which one's right for this model?

Answer by: Customer Support on Jan 23, 2026, 12:24 PM

Both numbers are accurate, they just apply to different things. The 114 liters per minute is the rated flow for this specific valve, the POC1-12-F-IA12T-030. The 227 L/min figure reflects the upper capability of the broader POC1-12 series. So if your system runs at or under 114 L/min, this valve is sized right for the job.
