RV6 10 S 0 25/

Description & Features

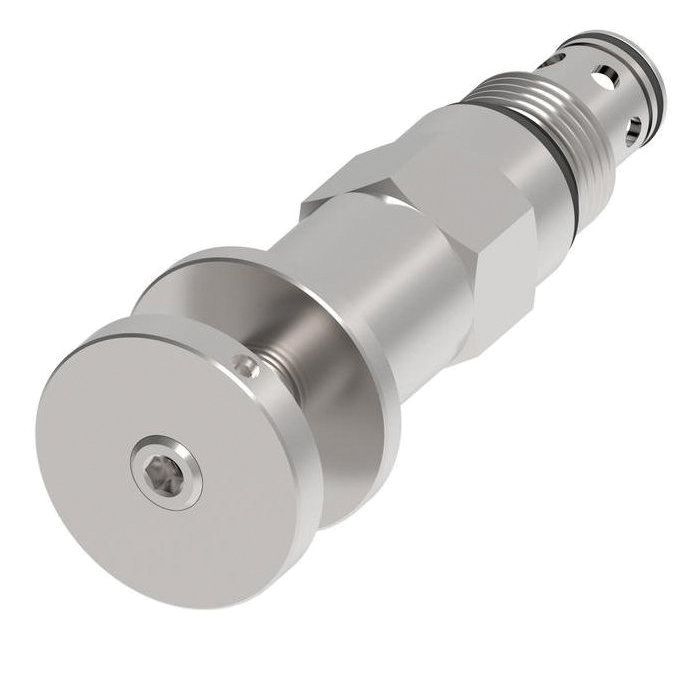

The Vickers by Danfoss / Eaton RV6-10 Series Pressure Control Valves, such as this RV6 10 S 0 25/, provide reliable and economical performance in a compact design. Suitable for mobile and industrial applications, including harvesters and refuse haulers, these valves offer maximum flexibility while occupying minimal space.

This ball style valve has a flow rate of 15 liters per minute and is designed for pressure control in demanding hydraulic circuits. It can handle pressures up to 350 bar (5000 psi) and flow rates up to 300 L/min (80 USgpm).

SKU: 02-177834

Supplier Part Number (MPN): 02-177834

Alternate Part Numbers: RV610S025/

Specifications

Actuator Type Direct Acting	Dimensions 3.06 in L x 1 in W x 1 in H	Nominal Size 10	Number of Ports/Ways 2-Port	Port Type Cartridge	Seal Material Buna-N	Segment Code C	Series RV6-10 Series	Style Ball

Product Questions & Answers (2)

Question by: Ralph G on Oct 9, 2025, 2:27 PM

Been running this on a refuse hauler and it's held up fine, but my buddy's got a harvester application he's trying to sort out. Does this valve hold up to that kind of use too, or is it more of a light-duty piece?

Answer by: Customer Support on Oct 11, 2025, 1:58 PM

Both of those applications are actually right in the wheelhouse for this valve. Harvesters and refuse haulers are specifically called out as intended uses, so your buddy shouldn't have any concerns there. The RV6-10 is built for demanding hydraulic circuits, handles pressures up to 350 bar (5000 psi), and can move flow up to 300 liters per minute. It's compact but not fragile, and the ball style construction keeps things reliable across the kind of real-world punishment those machines deal out.

Question by: Steve H on Aug 18, 2025, 12:50 PM

Will this handle a harvester okay?

Answer by: Customer Support on Aug 20, 2025, 6:51 AM

Application in harvesters is definitely within the design scope for these Vickers pressure control valves.
