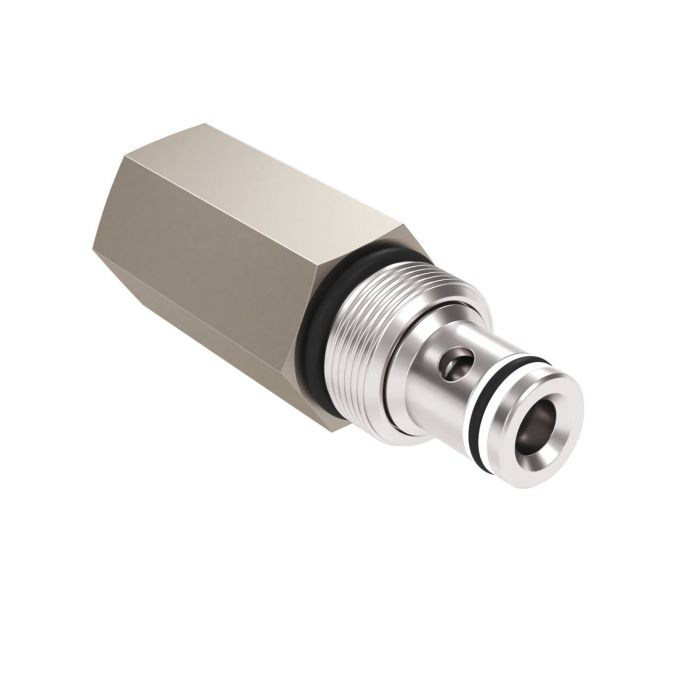

VICKERS RV5-10-S-0-20/19

Description & Features

Designed for mobile and industrial hydraulic systems, the Vickers RV5-10-S-0-20/19 is a spool-style pressure control valve rated for up to 350 bar (5,000 psi) and capable of handling flow rates up to 300 L/min (80 US gpm). Its compact form factor supports installation in space-constrained equipment, making it well suited for harvesters, refuse haulers, and a range of industrial machinery.

Part of the Vickers by Danfoss RV5-10 Series, this valve balances reliable pressure regulation with a straightforward, economical design. With a noted flow rate of 114 litres per minute for this specific configuration, it provides consistent performance across demanding duty cycles where dependable pressure control is required.

SKU: 02-177861

Supplier Part Number (MPN): 02-177861

Specifications

Brand Vickers by Danfoss	Actuator Type Pilot Operated	Adjustment Type Screw	Cavity C-10-2	Dimensions 4.38 in L x 1 in W x 1 in H	Domestic/Import Import	Housing Without Housing	Installation Type Screw-In Cartridge	Nominal Size 10	Number of Ports/Ways 2-Port	Port Type Cartridge	Seal Material Buna-N	Series RV5-10 Series	Style Spool

Product Questions & Answers (1)

Question by: Jimmy P on Nov 3, 2025, 11:59 AM

Got a refuse hauler that needs a pressure control valve and space is real tight under the hood, will this one fit where others won't?

Answer by: Customer Support on Nov 5, 2025, 8:11 AM

Compact is kind of the whole point of this series. The RV5-10-S-0-20/19 was built with space-constrained installs in mind, so it tends to work well in tight equipment bays like you'd find on refuse trucks. It handles up to 350 bar and 300 L/min, so you're not giving up capacity just to get the smaller footprint.
