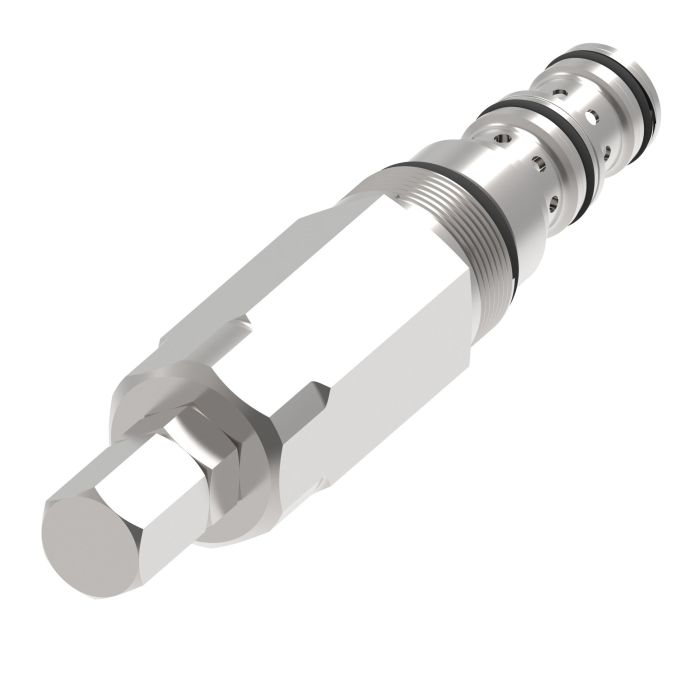

main product photo

VICKERS PSV4 8V S 0 30/

Ask A Question

Description & Features

Designed for demanding mobile and industrial environments, the Vickers PSV4 8V S 0 30/ is a spool-style pressure control valve built for consistent, reliable performance across a wide range of hydraulic systems. Rated to 350 bar (5,000 psi) with flow capacity up to 300 L/min (80 USgpm), it handles the pressure and flow demands common to harvesters, refuse haulers, and similar mobile equipment, as well as stationary industrial machinery.

Part of the Vickers by Danfoss/Eaton PSV4-8 series, this valve combines a compact footprint with flexible mounting options, making it well-suited for installations where space is limited. The spool construction supports accurate pressure regulation, and the series is noted for its economical design without compromising functional reliability. A flow rate of 15 litres per minute is specified for this configuration.

SKU: 02-180417

Supplier Part Number (MPN): 02-180417

Specifications

Brand
Vickers by Danfoss
Actuator Type
Direct Acting
Adjustment Type
Screw
Cavity
C-8-3
Configuration
Normally Closed
Dimensions
4.42 in L x 0.87 in W x 0.87 in H
Domestic/Import
Import
Housing
Without Housing
Installation Type
Screw-In Cartridge
Language
English
Number of Ports/Ways
3-Port
Port Type
Cartridge
Seal Material
FKM
Series
PSV4-8 Series
Style
Spool

Product Questions & Answers (2)

Question by: Neil C on Sep 4, 2025, 8:10 AM
Running a refuse hauler and need a pressure control valve that can keep up with the hydraulic demands on the job. This PSV4 8V rated for the kind of pressure and flow we're throwing at it?
Answer by: Customer Support on Sep 5, 2025, 1:17 PM
Refuse hauler work is exactly the kind of application this valve was built around. It's rated to 350 bar (5,000 psi) and handles flow up to 300 L/min (80 USgpm), so it's got the capacity to hold up under the kind of continuous demand those trucks put on a hydraulic system. The spool-style construction keeps pressure regulation steady, and the compact build means you're not fighting for real estate on a crowded mounting surface.
Question by: Randy C on Mar 29, 2026, 1:39 PM
Reckon this would be okay to use on a big ol' harvester?
Answer by: Customer Support on Mar 31, 2026, 8:16 AM
Designed for demanding mobile and industrial environments, this Vickers PSV4 pressure control valve should perform reliably in harvesters, refuse haulers, and similar heavy equipment.
