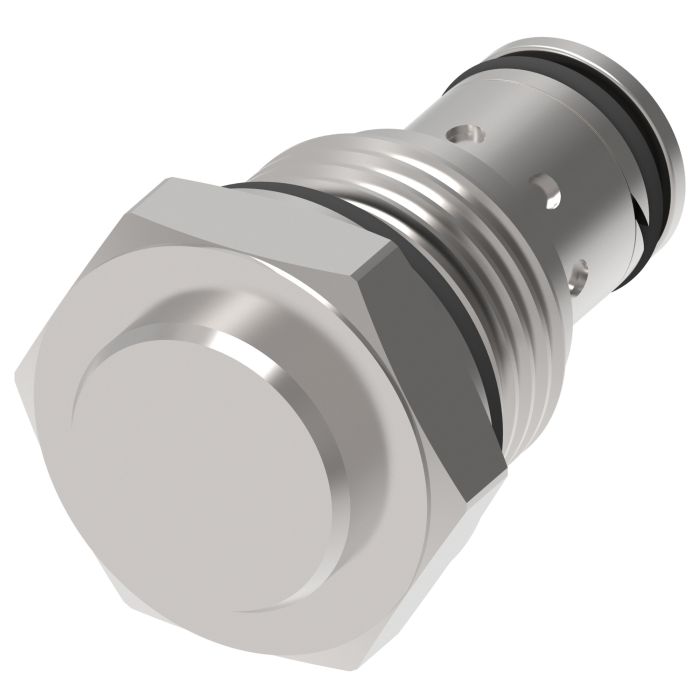

VICKERS CV16-10V-P-0-25

Ask A Question

Description & Features

Designed for demanding mobile and industrial hydraulic circuits, the Vickers CV16-10V-P-0-25 is a poppet-style check valve rated to 350 bar (5,000 psi) with a maximum flow capacity of 227 L/min (60 USgpm). The poppet construction supports reliable, low-leak seating across a broad range of operating conditions, while low spring settings help minimize pressure drop through the valve.

Suited for use in harvesters, refuse haulers, and a range of mobile and industrial hydraulic systems, this valve handles a working flow rate of 76 litres per minute. As part of the Vickers CV16-10 series from Danfoss/Eaton, it is built to perform consistently where dependable flow control and high operational efficiency are required.

SKU: 02-180552

Supplier Part Number (MPN): 02-180552

Specifications

Actuator Type
Direct Acting
Dimensions
1 in L x 1.56 in W x 1 in H
Domestic/Import
Import
Language
English
Mounting Type
Screw-In
Nominal Size
10
Number of Ports/Ways
2-Port
Seal Material
Buna-N
Segment Code
B
Series
CV16-10 Series
Style
Poppet

Product Questions & Answers (2)

Sign In Hover me Please sign in to submit a question
Question by: Wade M on Apr 16, 2025, 7:54 PM
Running a refuse hauler and trying to figure out if this check valve can handle what we're throwing at it pressure-wise. We're regularly seeing spikes up to around 4,800 psi in the circuit. That within range for this thing?
Answer by: Customer Support on Apr 18, 2025, 6:09 AM
At 4,800 psi you're well within the rated limit. The CV16-10V-P-0-25 is built for up to 5,000 psi (350 bar), so that kind of operating pressure is not pushing the boundary on this valve. The poppet-style construction also helps maintain a solid, low-leak seal even when pressure conditions fluctuate, which is common in refuse hauler applications. For the flow side, the valve supports a working flow rate of 76 litres per minute and can handle up to 227 L/min at peak capacity, so most refuse hauler circuits are going to fit comfortably inside those numbers.
Question by: Peggy E on Mar 19, 2026, 7:24 AM
What kind of machines does this check valve usually go on?
Answer by: Customer Support on Mar 21, 2026, 6:19 AM
This Vickers check valve is frequently used on harvesters and refuse haulers, along with other mobile and industrial hydraulic systems.
