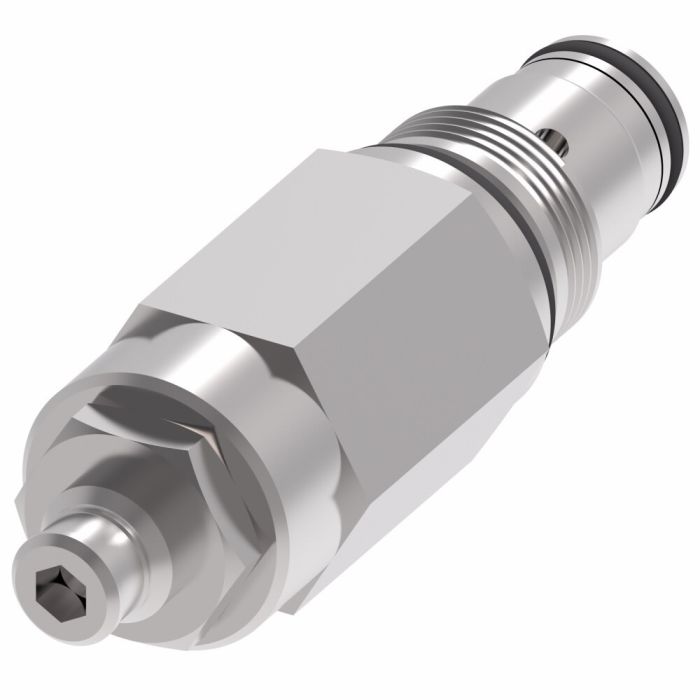

main product photo

FAR1-12-S-0-25

Ask A Question

Description & Features

The Vickers FAR1-12-S-0-25 pressure-compensated flow control valve with free reverse flow is designed for mobile and industrial applications such as harvesters and refuse haulers.

This Vickers by Danfoss FAR1-12 series valve offers a reliable and economical solution for flow control, providing a balance of pressure and flow with a flow rate of 95 liters per minute. It withstands pressures up to 350 bar (5000 psi) and offers a maximum flow of 350 L/min (92 USgpm). It has a product width of 1.25.

SKU: 02-182696

Supplier Part Number (MPN): 02-182696

Alternate Part Numbers: FAR1-12-S-0-25

Specifications

Brand
Danfoss
Actuator Type
Screw
Cavity
C-12-2
Dimensions
4.41 in L x 1.25 in W x 1.25 in H
Media
Oil
Mounting Type
Cartridge
Nominal Size
#12
Operator Type
Screw
Seal Material
Buna-N
Series
FAR1-12 Series
Softgoods Material
Buna-N
Style
Pressure Compensated with Free Reverse Flow

Product Questions & Answers (2)

Question by: Warren B on Sep 17, 2025, 5:10 PM
Running a refuse hauler and need a flow control valve that won't buckle under pressure. This FAR1-12-S-0-25 rated for heavy-duty use or is it more of a light-duty part?
Answer by: Customer Support on Sep 19, 2025, 6:26 AM
Rated up to 350 bar (5000 psi) with a maximum flow capacity of 350 liters per minute (92 USgpm), this valve is built for exactly that kind of demanding work. The FAR1-12 series was developed with mobile applications like refuse haulers in mind, so high-cycle, high-pressure environments are well within its design intent. It also features pressure compensation, which keeps flow consistent even as system pressure fluctuates, and that matters a lot when you're working equipment that sees variable loads throughout the day.
Question by: Duane C on Nov 29, 2025, 7:14 AM
If I'm pushin' close to that max pressure, will this valve still give me a steady flow?
Answer by: Customer Support on Dec 1, 2025, 6:18 AM
This valve is pressure-compensated, so it's designed to maintain a consistent flow rate even as the pressure fluctuates, up to its maximum rating of 350 bar (5000 psi). You should see a stable flow.
