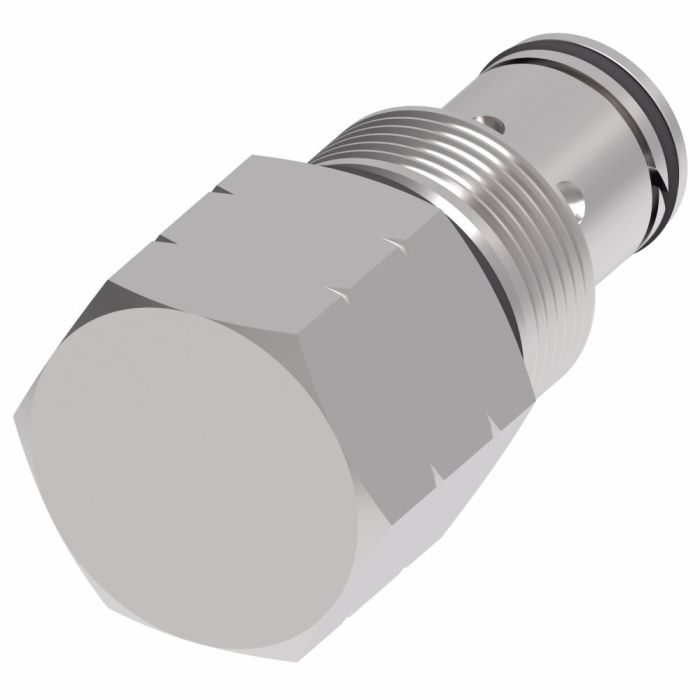

VICKERS FR5-10-F-0-5.50

Ask A Question

Description & Features

Designed for mobile and industrial hydraulic circuits, the Vickers FR5-10-F-0-5.50 is a fixed pressure compensated flow regulator built to maintain consistent flow output regardless of load or supply pressure variation. Rated for operation up to 350 bar (5,000 psi) and 350 L/min (92 USgpm), it delivers a reliable balance of high-pressure capability and controlled flow in a compact form factor.

With a working flow rate of 23 litres per minute, this valve is well suited to demanding duty cycles found in harvesters, refuse haulers, and a broad range of mobile and stationary industrial equipment. The fixed compensator design simplifies installation and reduces component count where variable adjustment is not required. Manufactured under the Vickers brand by Danfoss/Eaton, it carries the build quality associated with the FR5-10 series of flow control valves.

SKU: 02-183066

Supplier Part Number (MPN): 02-183066

Specifications

Brand
Vickers by Danfoss
Actuator Type
Pressure Compensated
Adjustment Type
Fixed Orifice
Cavity
C-10-2
Dimensions
2.07 in L x 1 in W x 1 in H
Domestic/Import
Import
Housing
Without Housing
Mounting Type
Screw-In
Nominal Size
10
Number of Ports/Ways
2-Port
Port Type
Cartridge
Seal Material
Buna-N
Series
FR5-10 Series
Spool Seal
Without Spool Seal
Style
Spool

Product Questions & Answers (2)

Question by: Shane H on May 14, 2025, 7:25 PM
Got a harvester sitting idle cause the flow's all over the place depending on load. Would the FR5-10-F-0-5.50 hold a steady 23 litres per minute even when the pressure swings around?
Answer by: Customer Support on May 16, 2025, 6:19 AM
Keeping consistent output when load pressure bounces around is exactly what the pressure compensated design handles. The fixed compensator works to maintain that 23 litre per minute flow rate regardless of what the load or supply pressure is doing at any given moment. That kind of stability is why this valve gets used in harvesters and similar equipment where inconsistent flow causes real operational headaches. Since it's a fixed unit rather than an adjustable one, there's no tuning required on your end to get it there either.
Question by: Travis G on May 24, 2025, 1:38 PM
Will this flow regulator work okay on a refuse truck?
Answer by: Customer Support on May 25, 2025, 4:29 PM
Designed for mobile hydraulic circuits, this flow regulator is well-suited to demanding duty cycles like those found in refuse haulers.
